The Technology and Advantages of Transflective LCD Displays

Transflective Liquid Crystal Display (Transflective LCD) combines the characteristics of transmissive and reflective LCDs and has unique technology and significant advantages. The following is a detailed analysis of its technology and advantages:

Technical features

Dual light source mode:
Transflective LCD displays can simultaneously use backlight modules and external ambient light as light sources. When the external ambient light is strong, the backlight module can be turned off and the image displayed in reflective mode to save energy.
When the external ambient light is weak, the backlight module can be turned on like a transmissive LCD monitor to emit uniform illumination to ensure a clear screen display.

Transflective electrode material:
Transflective displays may use transflective electrode materials to replace the lower transparent electrode of traditional transmissive displays. This material can both transmit light and reflect light, so that the backlight module and the external ambient light reflected by the transflective electrode material jointly provide a light source for the displayed image.

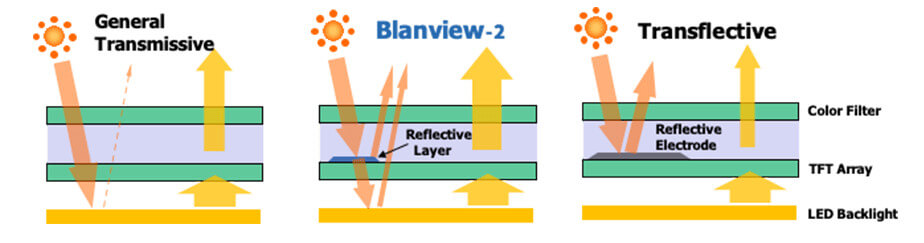

Structural design:
The design of a transflective LCD is similar to a reflective LCD screen with a light-emitting panel underneath the LCD panel. This design allows the display to emit uniform illumination like a transmissive LCD screen when the backlight is turned on, but relies on reflected external light to display images when the backlight is turned off.

Transflective LCD Advantage

Significant energy saving effect:
In an environment with sufficient light, a transflective LCD can turn off the backlight module and only rely on reflecting external light to display images, thus greatly reducing energy consumption. This energy saving is especially important in modern mobile devices, helping to extend battery life.
Adaptable:
Transflective LCD displays can maintain good display effects under different light conditions. Whether it is a strong light or low light environment, users can get a clear visual experience. This property makes transflective displays widely used in both outdoor and indoor environments.
Improve user experience:
Since transflective displays can automatically adjust the display mode according to ambient light, users do not need to manually adjust the screen brightness to obtain the best visual effects. This intelligent design improves the user experience.

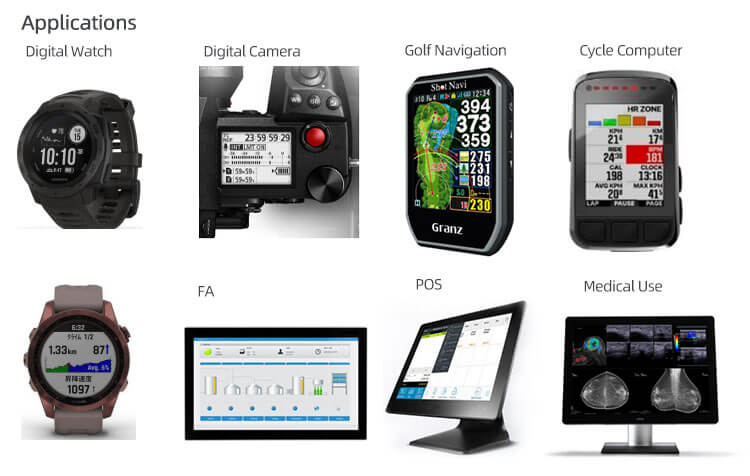

Wide range of market applications:
Transflective LCDs are currently widely used in mobile display fields such as mobile phones, scanners, game consoles, and navigation equipment. These devices have high requirements for the stability and energy saving of display effects, and transflective displays can exactly meet these requirements.

To sum up, transflective LCDs occupy an important position in the field of modern display technology with their unique technical characteristics and significant advantages. With the continuous advancement of technology and changes in market demand, transflective displays are expected to be more widely used and developed in the future.
