Youritech OEM 11.6 Inch Free Angle 1920x1080 Resolution with eDP 30 Pins Wide Temperature LCD Display For Industrial

Part No.:ET116FH01-T
Size:11.6″ inch
Resolution:1920x1080
Panel Interface:eDP 30 Pins
Display mode:Transmissive
Outline Dimension:263.6(W)x157.42(H)mm
Active Area:256.32(W)x144.18(H)mm(A.A)
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Products Description

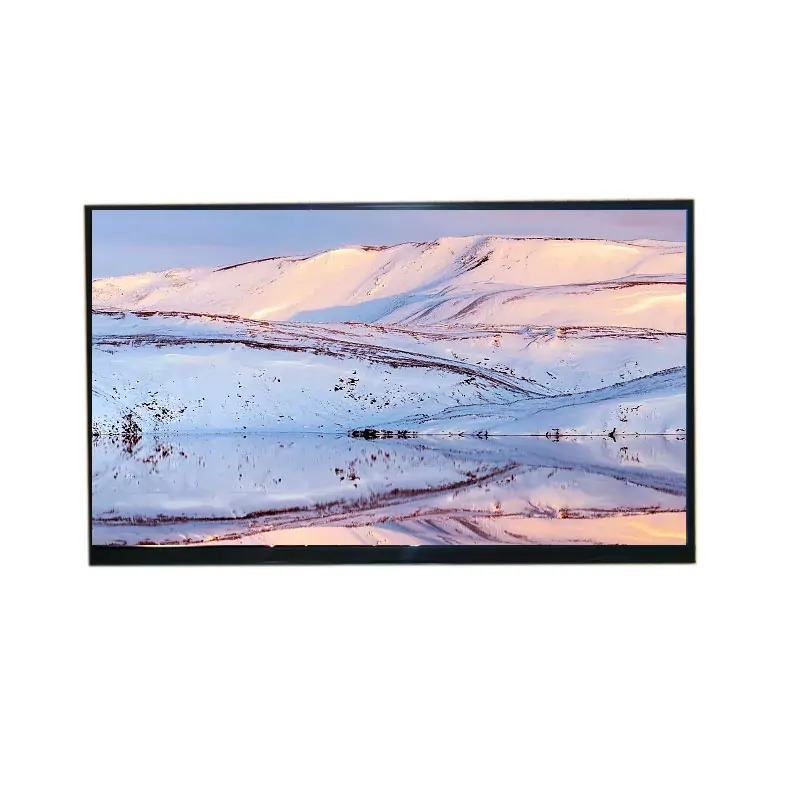

ET116FH01-T-10.6inch-

Product size	11.6 inch	Type	a-Si TFT-LCD
Pixel Format	1920×1080	Configuration	RGB Vertical Stripe
Active Area	256.32 (W) × 144.18 (H) mm (A.A)	Outline Dim.	263.6 (W) × 157.42 (H) mm
Luminance	400 (Typ.)	Contrast Ratio	1200:1 (Typ.)
View Direction	Symmetry	Polarizer	Transmissive
Viewing Angle	85/85/85/85 (L/R/U/D)	Operating Mode	-
Support Color	16.7M	Light Source	WLED
Aspect Ratio	16:9 (W:H)	Designed For	Automotive Display, Digital Signage, Healthcare, Industrial
Form Factor	Flat Rectangle	Touch Panel	Without
Max. Depth	2.6 mm
Interface Type	eDP 30 Pins
LC Family	IPS Family
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

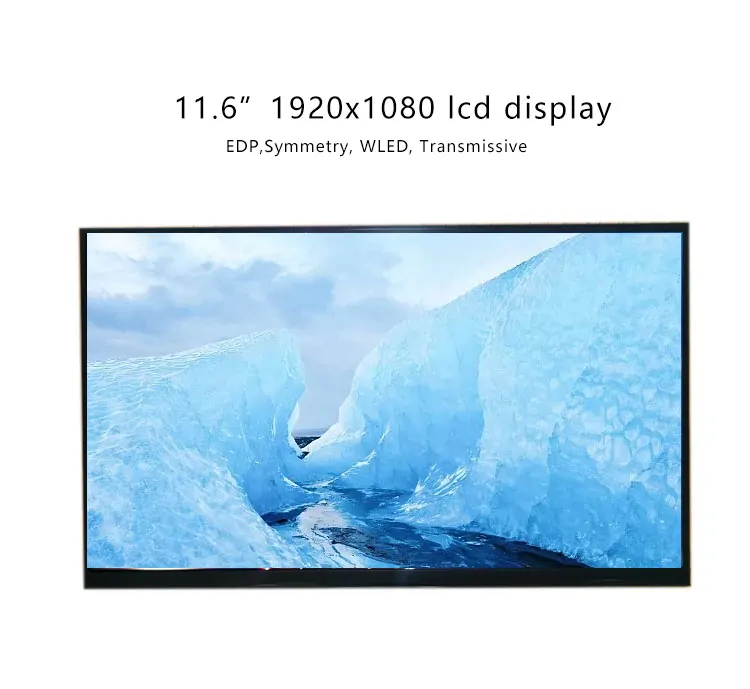

ET116FH01-T_01 ET116FH01-T_02 ET116FH01-T_03
