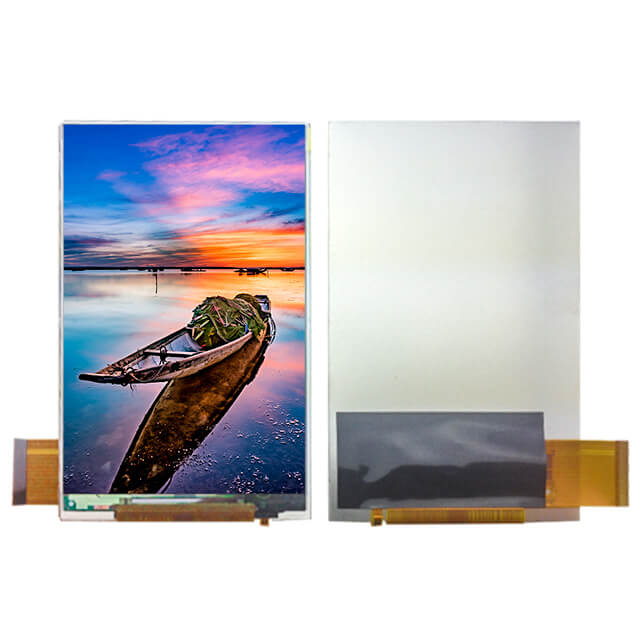

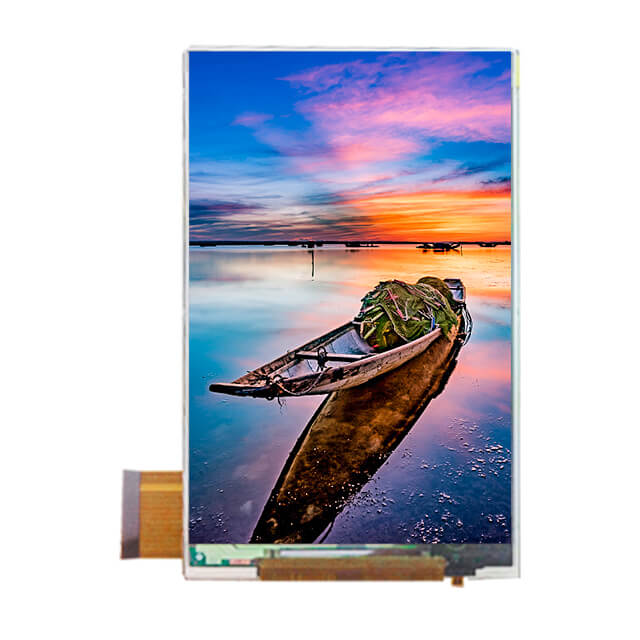

| Product size | 3.5-inch | Type | CG-Silicon, LCM |
| Pixel Format | 480(RGB)×800 [WVGA] 268PPI | Configuration | RGB Vertical Stripe |
| Active Area | 45.36(H)×75.6(V) mm | Outline Dim. | 51.16(H)×87.47(V) ×3.04(D) mm |
| Bezel Area | 46.36(H)×76.6(V) mm | Treatment | - |
| Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (TM) 10:1 (Typ.) (RF) |
| View Direction | Symmetry |
Response Time |
11/24 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Operating Mode | ASV, Normally Black, Transflective |
| Support Color | 16.7M 50% NTSC | Light Source | WLED [7S1P] , W/O Driver |
| Weight | 14.9g (Typ.) | Designed For | Mobile Phone |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit) + SPI , 49 pins FPC | ||
| Power Supply |
1.8/2.8V (Typ.)(VDDIO/VCC) |
||
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
