0.48"-5" LCD Display (5")

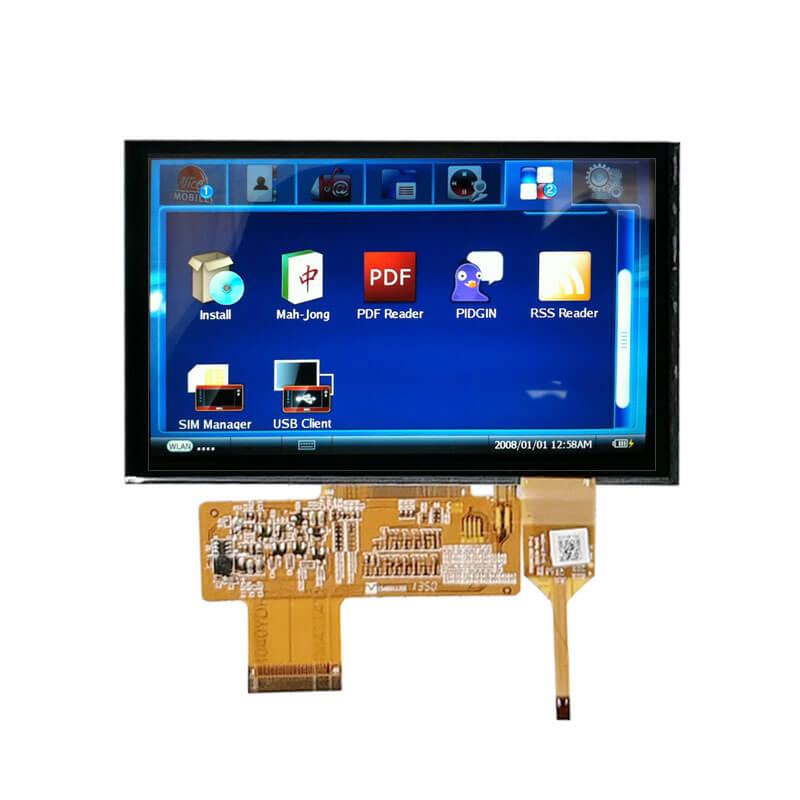

TM050RDH03 Original 5 Inch TFT LCD Display 800x480 Parallel RGB LCD Panel

Part No.:TM050RDH03
Size:5″ inch
Resolution:800x480
Panel Interface:Parallel RGB
Display mode:TN,Transmissive
Outline Dimension:120.7(W)x75.8(H)x3.1(D)mm
Active Area:108(W)x64.8(H)mm
Viewing Angle L/R/U/D:70/70/50/70 (Typ.)
Brightness（cd/m2）:250cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

TM050RDH03 Overview
The TM050RDH03 is a 5.0 inch diagonal a-Si TFT-LCD display panel, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: WLED Backlight, Matte . Based on its features, we recommend that this model be applied to Industrial, Portable Navigation, MID UMPC, MP3 PMP etc.Built-in HX8664-B00PD400-B + HX8264-D02DPD400-A driver IC. (IOVCC/VCC).

Application
For Industrial.
