Tianma TM070RDHG23-40 Original 7 Inch TFT LCD Display 800x480 Sunlight Readable LCD Panel

Part No.:TM070RDHG23-40
Size:7″ inch
Resolution:800x480
Panel Interface:Parallel RGB (1 ch,8-bit)
Display mode:TN,Normally White
Outline Dimension:165(W)x100(H)mm

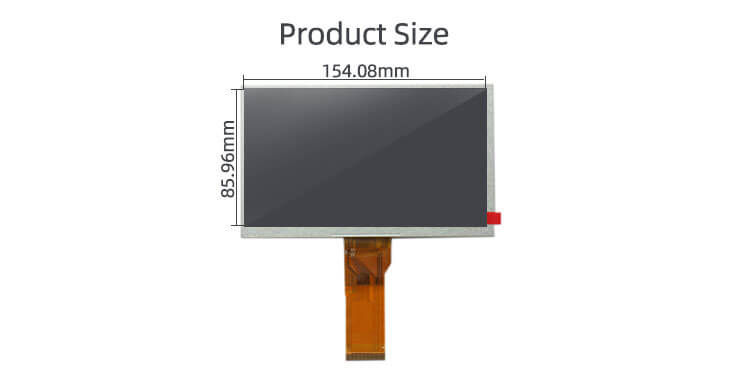

Active Area:154.08(W)x85.92(H)mm
Viewing Angle L/R/U/D:80/80/60/80
Brightness（cd/m2）:1400cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

TM070RDHG23-40 Overview
TM070RDHG23-40 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.TM070RDHG23-40 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 154.08(W)×85.92(H) mm, outline size of 165(W)×100(H)×6(D) mm, viewing area size of 157.08(W)×89.39(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150g (Typ.). As a TN, Normally White, Transmissive LCM product, TM070RDHG23-40 can provides 1400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms.

Feature
Ultra High Brightness 1400nits
U/D,L/R Reverse
Matte

Application
For Handheld & PDA,Industrial,Outdoor high brightness.
