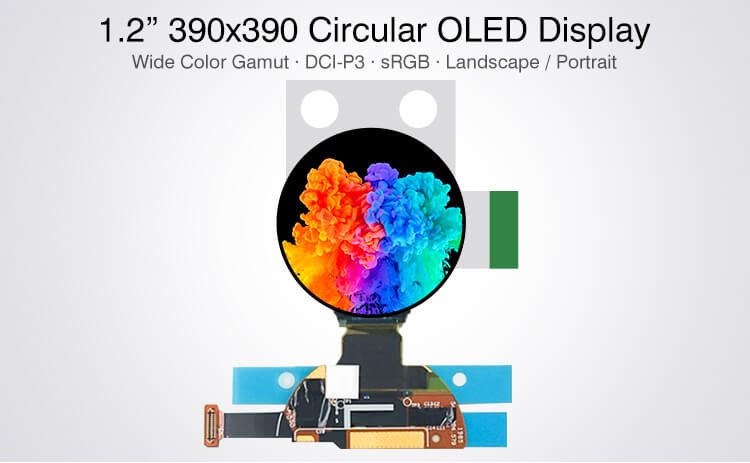

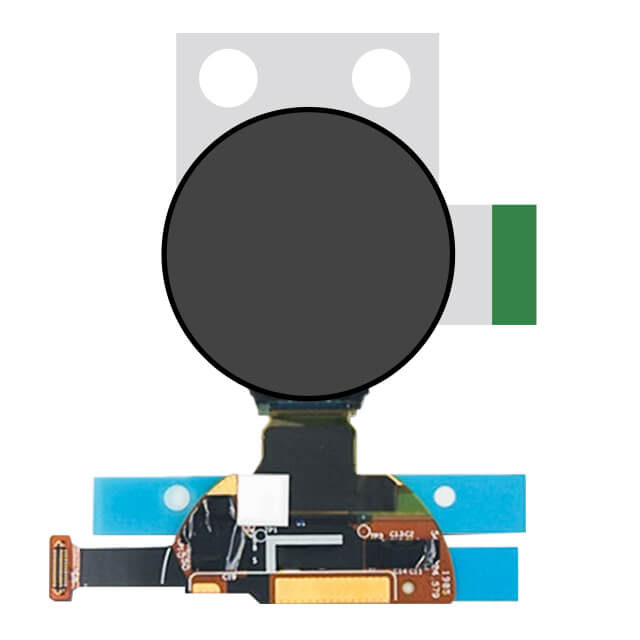

| Product size | 1.2-inch | Type | OLED, AM-OLED |
| Pixel Format | 390(RGB)×390 325PPI | Configuration | RGB Vertical Stripe |

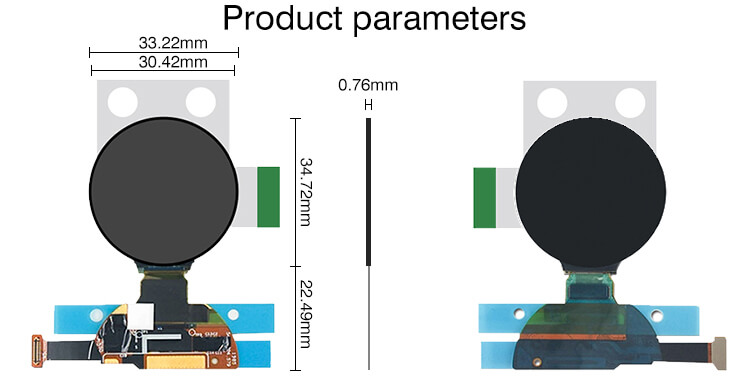

| Active Area | 30.42(H)×30.42(V) mm | Outline Dim. | 33.22 × 34.72 × 0.76 (H×V×D) |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 10000:1 (Min.) (TM) |
| View Direction | Symmetry | Response Time | - |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) | Operating Mode | - |
| Support Color | 16.7M 101% NTSC | Light Source | self |
| Weight | - | Designed For | Wearable Round Display |
| Frequency | 45HZ | Touch Panel | Without |
| D-IC Detail | Built-in COG W022 ASIC | ||
| Interface Type | MIPI (1 data lane) , 24 pins Connector | ||
| Power Supply | 1.8/3.3/3.3/-3.3V (Typ.)(VDDIO/VCI/ELVDD/ELVSS) | ||
| Environment | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | ||
