P215HAN02.0 Overview

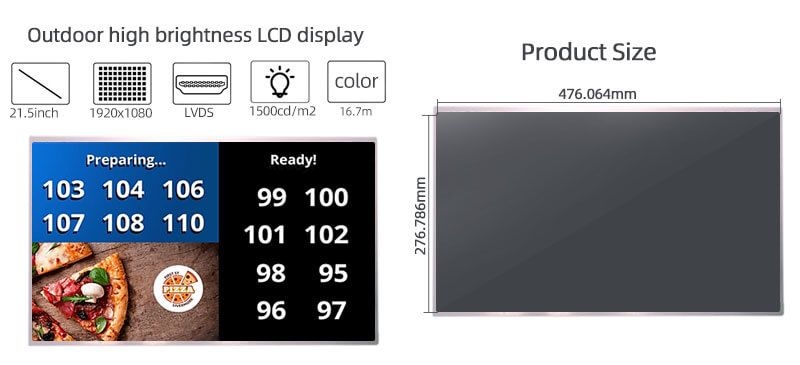

P215HAN02.0 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.P215HAN02.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 476.064(W)×267.786(H) mm, outline size of 501.1(W)×292.2(H)×16.12(D) mm, viewing area size of 480.7(W)×271.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.10Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, P215HAN02.0 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).
Feature
IPS
Landscape / Portrait
Ultra High Brightness 1500cd/m2
WLED Backlight
Life ≥ 50K hours
Reverse I/F
Matte
Application
For Outdoor high brightness,Medical Imaging,Industrial.
