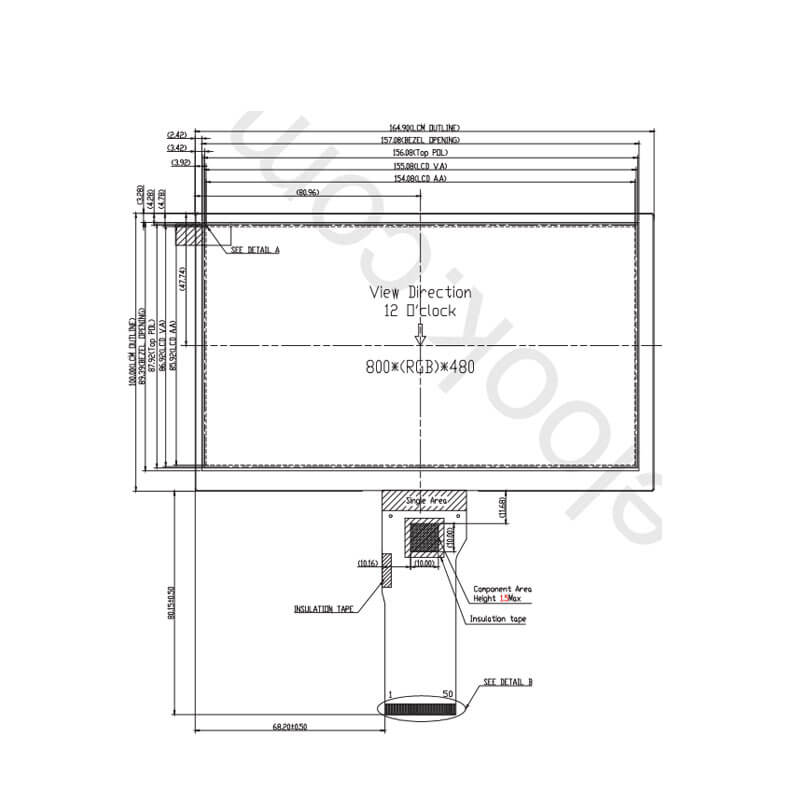

P0700WVN1MB01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, with surface treament of Antiglare, net weight of 160g. As a TN, Normally White, Transmissive LCM product, P0700WVN1MB01 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 45K hours, external backlight driver is additionally needed. P0700WVN1MB01 utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.4/16/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
-WLED Backlight
-U/D,L/R Reverse
-Matte
Screen Size: 7 inch
Resolution: 800x480
Brand: Tianma
P0700WVN1MB01 Tianma 7 Inch 800x480 TTL TFT LCD Display.
