(19.1")

Outdoor High Brightness 19.1 inch Bar LCD Display 1920x360 Resolution LCD Panel IPS Display LVDS 30 Pins Interface Screen

Part No.:ET191-D20
Size:19.1″ inch
Resolution:1920x360
Panel Interface:LVDS 30 Pins
Display mode:Transmissive
Outline Dimension:510(W)x123(H)mm
Active Area:476.64(W)x89.37(H)mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:2000(Typ.)
Operation / Storage Temp:0~55°C / -20~60°C
Touch:no

Products Description

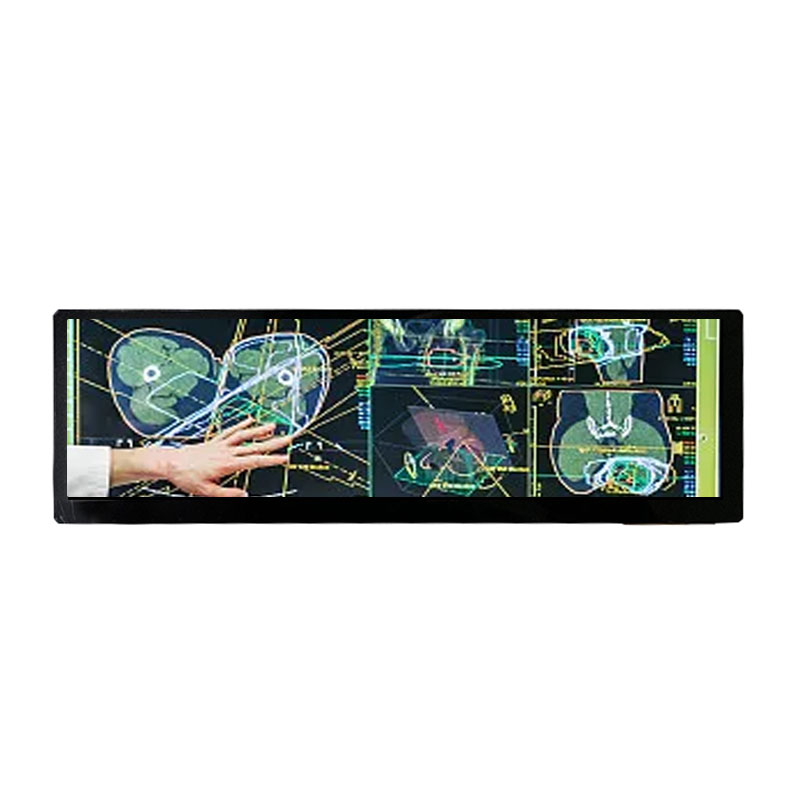

P191-D20-TFT-19.1inch-1920x360-LVDS-1

LCD SPECIFICATION
Panel Size	19.0"	Panel Type	a-Si TFT-LCD
Pixel Number	1920×360	Form Factor	Flat Rectangle
Active Area(mm)	476.64 (W) × 89.37 (H) mm (A.A)	Outline(mm)	510 (W) × 123 (H) mm
Bezel Area(mm)	/	Backlight Type	WLED
Luminance	2000 (Typ.)	Contrast Ratio	1000:1 (Typ.)
Viewing Angle	89/89/89/89 (L/R/U/D)	Display Mode	Transmissive
Signal Interface	LVDS 30 Pins
Display Colors	16.7M
Environment	Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C

P191-D20_02 P191-D20_03 P191-D20_04
