COM32H3M85ULC Overview

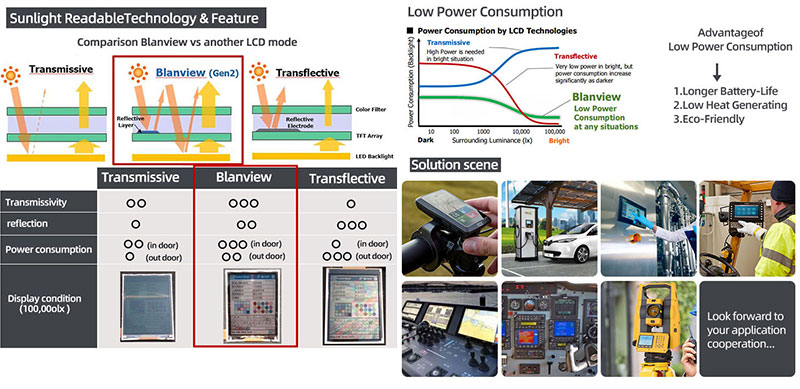

COM32H3M85ULC is a 3.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM32H3M85ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 294 PPI. As for mechanical detail, it features active area of 41.4(W)×69(H) mm, outline size of 46.66(W)×78.55(H)×2.57(D) mm, with surface treament of Hard coating (3H), net weight of 14.0g (Typ.). As a Buenaview, Normally Black, Transflective LCM product, COM32H3M85ULC can provides 380 cd/m² display brightness 1000:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors.
Application
For andheld & PDA,Industrial.
