(5.6")

Original new 5.6 inch tft lcd 640x480 LCD Display 41 pins RGB Interface Screen For Industrial Machine

  • Part No.:AT056TN53V.1
  • Size:0″ inch
  • Resolution:
  • Panel Interface:
  • Display mode:
  • Outline Dimension:
  • Active Area:
  • Viewing Angle L/R/U/D:
  • Brightness(cd/m2):
  • Operation / Storage Temp: /
  • Touch:

Product Description

Product size 5.6-inch Type LCM , a-Si TFT-LCD
Pixel Format 640(RGB)×480 (VGA) 143PPI Configuration RGB Vertical Stripe

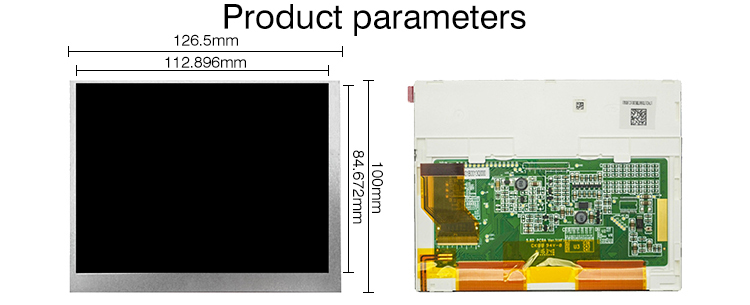

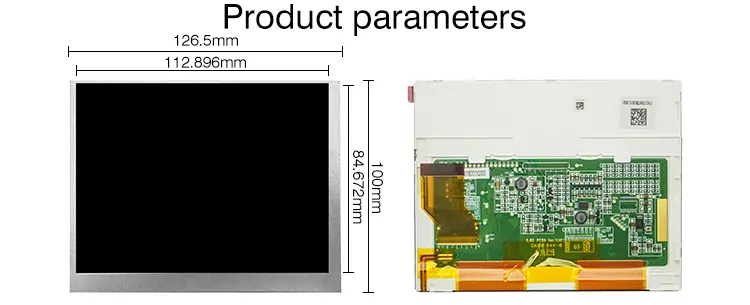

Active Area 112.896 × 84.672 (H×V) Outline Dim. 126.5 × 100 (H×V×D)
Bezel Area 115.90 × 87.67 (H×V) Treatment Antiglare
Luminance 350 (Typ.)(cd/m²) Contrast Ratio 500 : 1 (Typ.) (TM)
View Direction 6 o'clock Response Time 10/15 (Typ.)(Tr/Td) ms
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Support Color 262K 50% NTSC Light Source WLED , 20K hours , With LED Driver
Weight 83.1g (Typ.) Designed For Industrial Digital Photo Frame Video Door Phone VOIP Phone
Frequency 60Hz Touch Panel Without
Interface Type Parallel RGB (1 ch, 6-bit) , 40 pins FPC
Power Supply 3.3V (Typ.)(VCC)
Environment Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
