Original 4.8 Inch 1792x2240 MIPI Interface TFT LCD Display Screen RGB Vertical Bars Panel H477ULN01.1 for Mobile Phone

Part No.:H477ULN01.1
Size:4.8″ inch
Resolution:1792x2240
Panel Interface:MIPI
Display mode:/

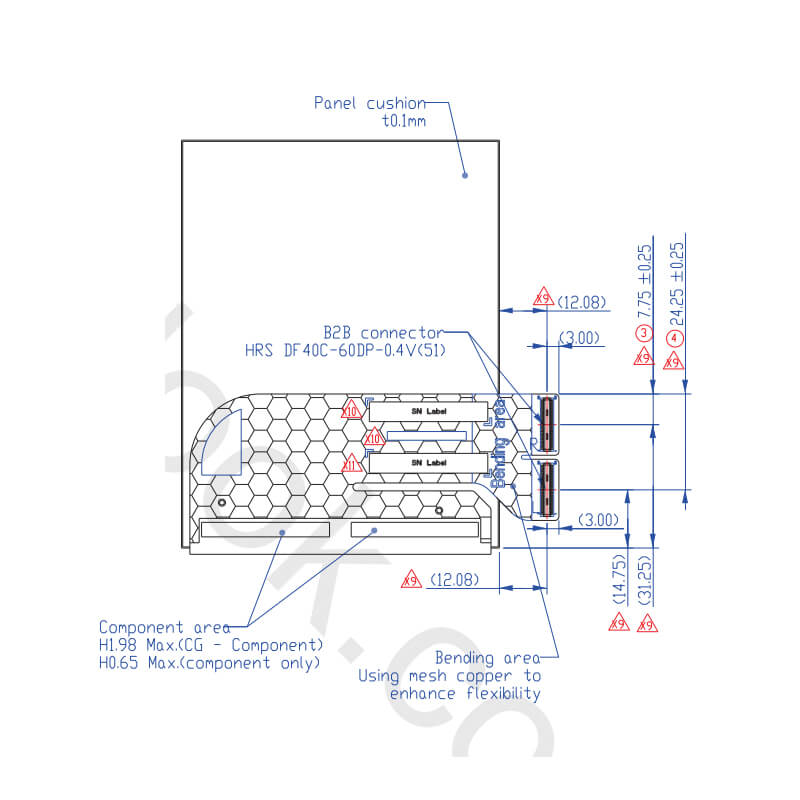

Outline Dimension:80.51x103.24mm
Active Area:75.712x94.64mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:150cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -40~80°C
Touch:no
