7.1"-10.1" LCD Display (8")

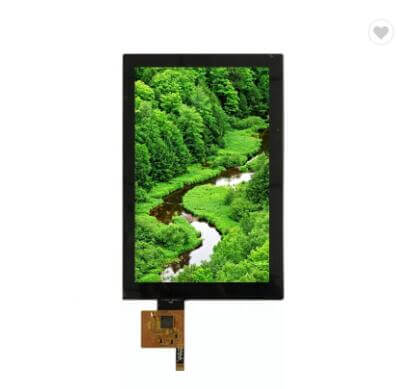

OEM 8 inch touch panel lcd 800x1280 resolution with 4 Lane MIPI 31pin wide viewing angel for medical equipment

Part No.:ET080WX02-KT
Size:8″ inch
Resolution:800x1280
Panel Interface:
Display mode:IPS
Outline Dimension:130.7x200.1x4.65
Active Area:107.64(H)x172.22V)
Viewing Angle L/R/U/D:85 85 85 85
Brightness（cd/m2）:200cd/m2
Operation / Storage Temp:-20～+60℃ / -25～+65℃
Touch:no

Display Mode	IPS
Part NO.	ET080WX02-KT
Size	8.0"
Resolution	800*1280
Active Area(mm)	107.64(H)*172.22V)
Brightness	200cd/m2
Operation Temperature	-20~+60
Storage Temperature	-25~+65℃
Viewing Angle	85 85 85 85
Interface	MIPI

YouriTech customized 8.0 inch IPS lcd module panel with capacitive touch screen 800*1280 MIPI interface ET080WX02-KT
