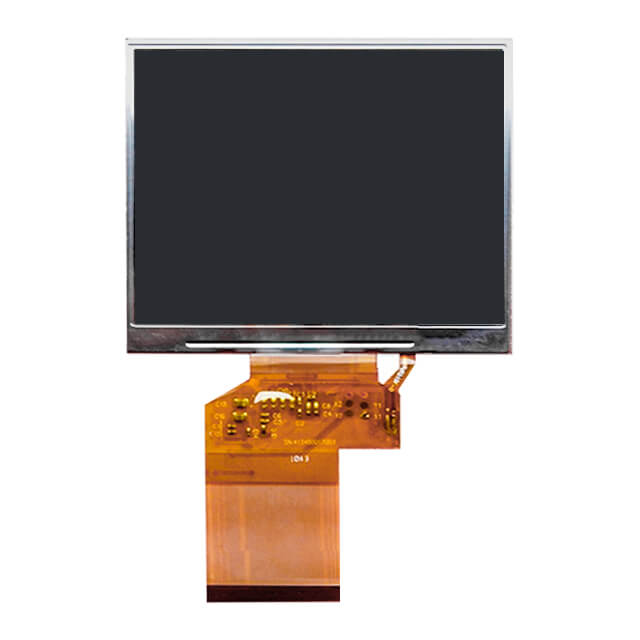

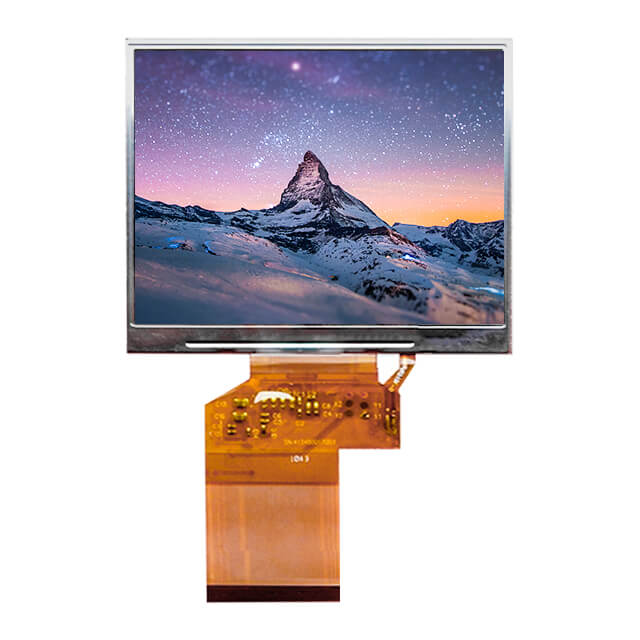

| Product size | 3.5-inch | Type | LCM , a-Si TFT-LCD |
| Pixel Format | 320(RGB)×240 (QVGA) 115PPI | Configuration | RGB Vertical Stripe |
| Active Area | 70.08 × 52.56 (H×V) | Outline Dim. | 76.9 × 63.9 × 3.46 (H×V×D) |
| Bezel Area | 73.03 × 55.50 (H×V) | Treatment | Antiglare (Haze 20%) |
| Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) ms |
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 60% NTSC | Light Source | 6S1P WLED , 10K hours , No Driver |
| Weight | 30.0g (Typ.) | Designed For | Handheld & PDA Portable Navigation Digital Still Camera Digital Video Camera |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
||
