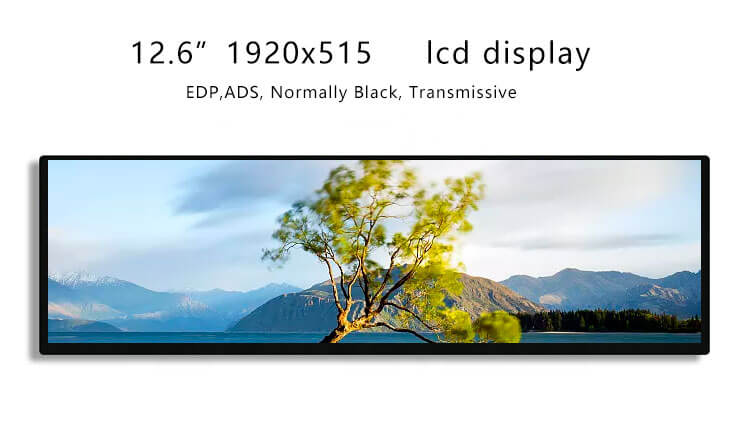

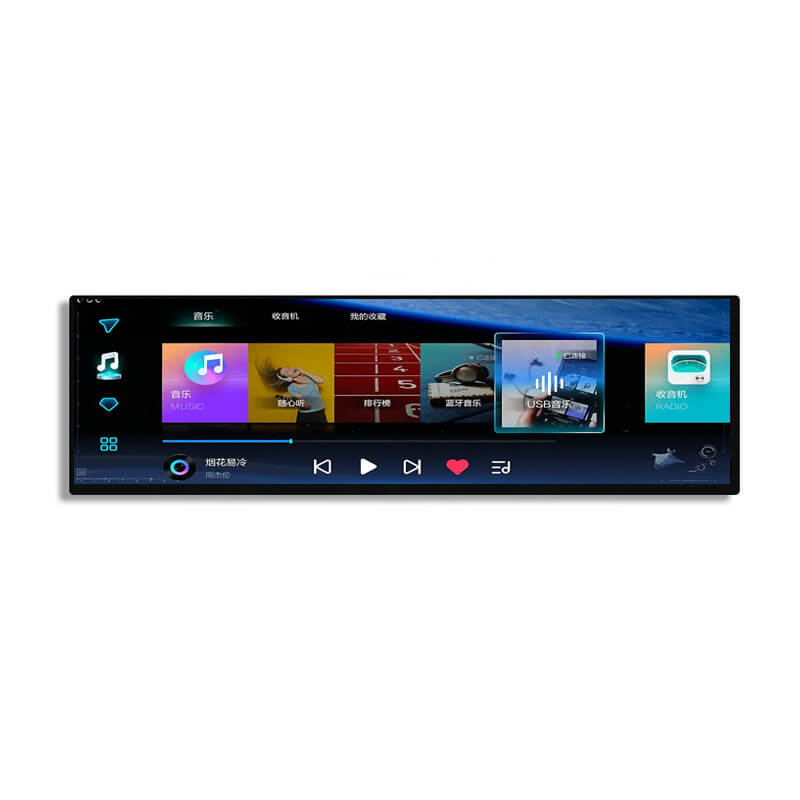

NV126B5M-N42 BOE 12.6 Inch Stretched Bar Display 1920x515 eDP Interface Bar LCD Display

Part No.:NV126B5M-N42
Size:12.6″ inch
Resolution:1920x515
Panel Interface:eDP (2 Lanes)
Display mode:ADS,Transmissive
Outline Dimension:315.61x94.02mm
Active Area:309.312x82.9665mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:400cd/m²(Typ.)
Operation / Storage Temp:0~60°C / -20~65°C
Touch:no

NV126B5M-N42 Overview
NV126B5M-N42 supports display 1920(RGB)×515 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.312(W)×82.9665(H) mm, outline size of 315.61(W)×94.02(H)×5(D) mm, with surface treament of Antiglare (Haze 40%), Hard coating, net weight of 175g (Max.). As a ADS, Normally Black, Transmissive LCM product, NV126B5M-N42 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC).
