| LCD SPECIFICATION | |||

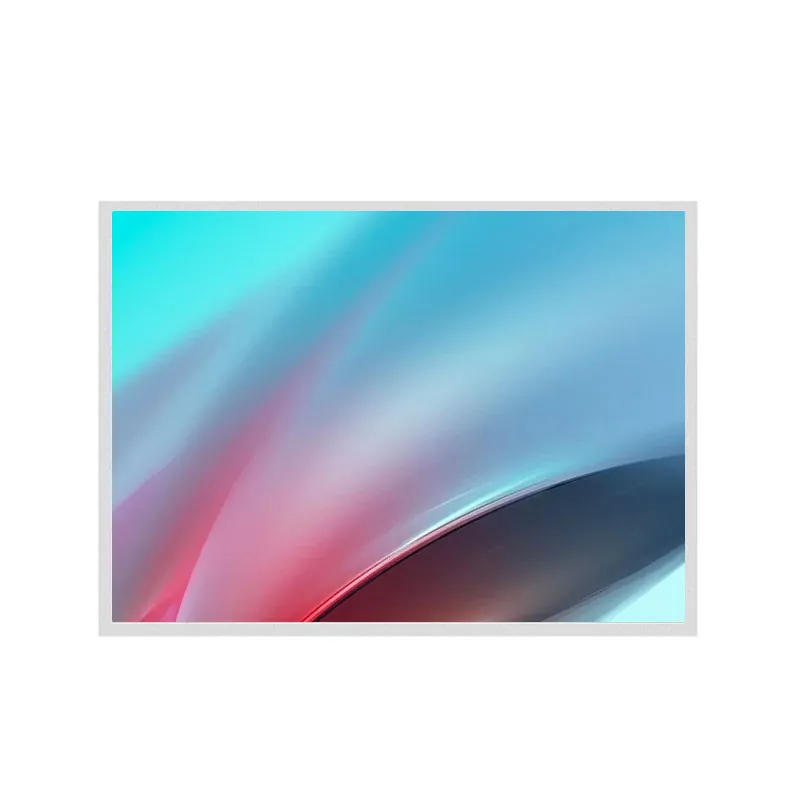

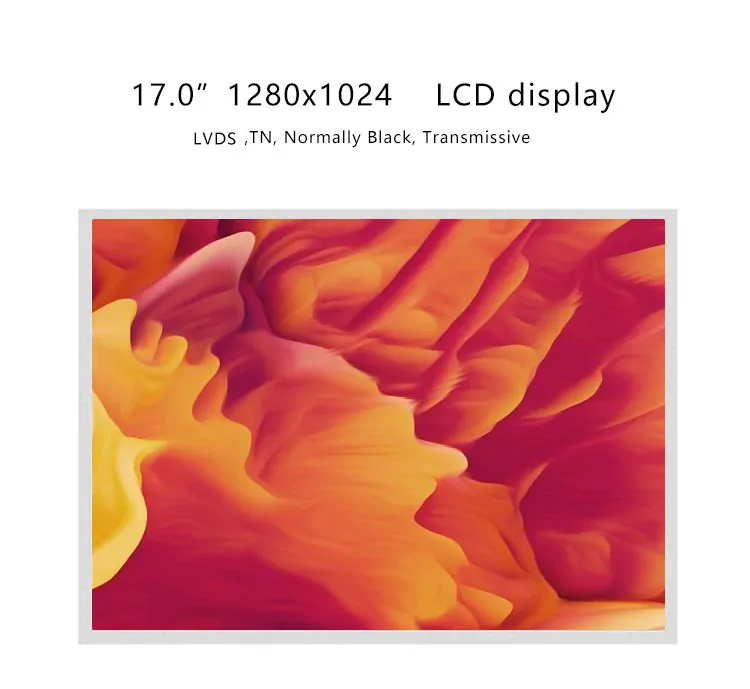

| Panel Size | 17.0" | Panel Type | a-Si TFT-LCD , LCM |
| Pixel Number | 1280(RGB)×1024 [SXGA] 96PPI | Configuration | RGB Vertical Stripe |
| Active Area(mm) | 337.92(H)×270.336(V) mm | Outline(mm) | 358.5(H)×296.5(V) ×10.8(D) mm |
| Bezel Area(mm) | 341.7(H)×274.1(V) mm | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| View Direction | - | Response Time | 3.8/1.2 (Typ.)(Tr/Td) |
| Support Color | 16.7M 72% NTSC | Backlight | WLED [9S4P] , 30K hours , W/O Driver |
| Weight | 1.27Kgs (Typ.) | Used for | Industrial |
| Frequency | 60Hz | Touchscreen | Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Input Voltage | 5.0V (Typ.) | ||
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
