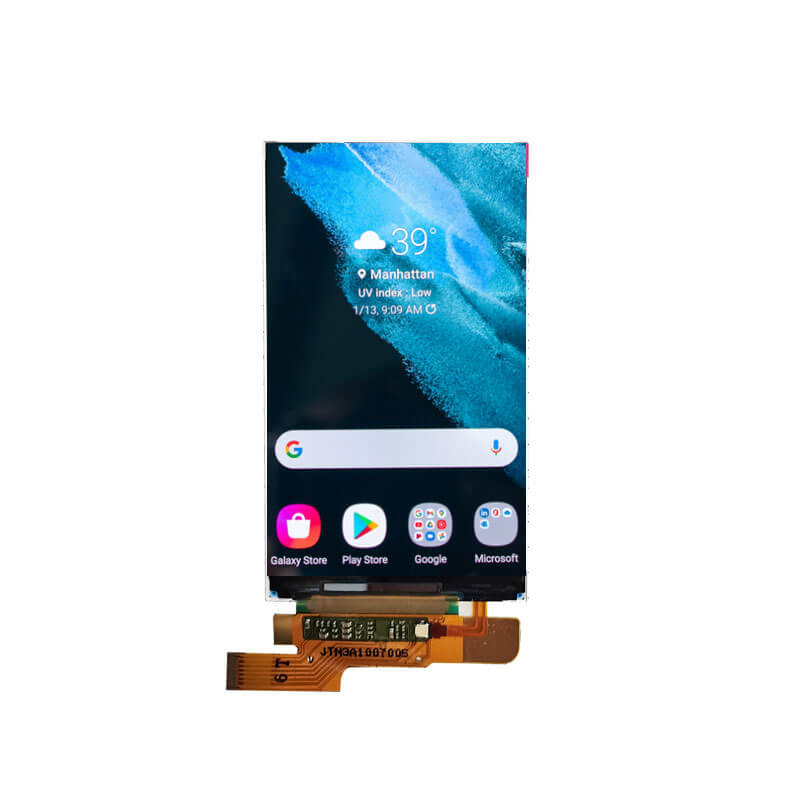

LT040MDT9000 Original 4 Inch TFT LCD Display 480×854 Transflective Sunlight Readable LCD Panel

LT040MDT9000 Overview

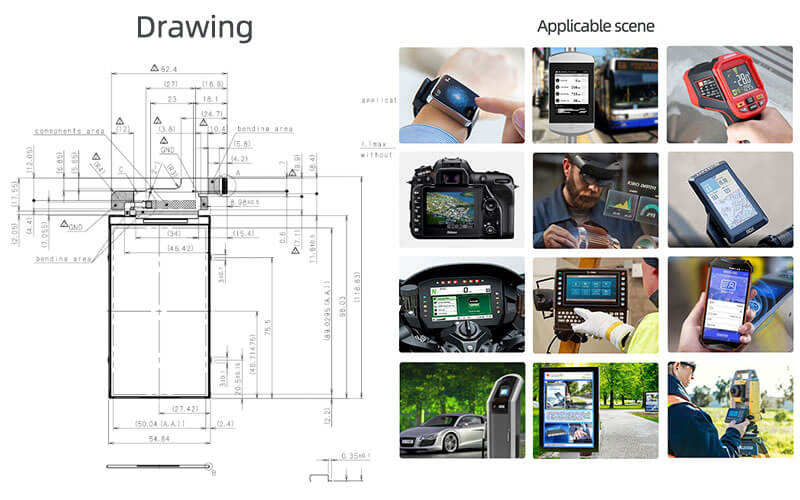

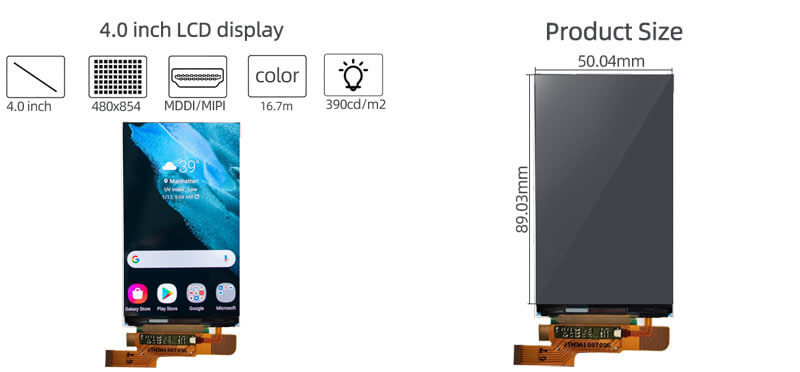

LT040MDT9000 supports display 480(RGB)×854 (FWVGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 50.04(W)×89.03(H) mm, outline size of 54.84(W)×98.03(H)×1.56(D) mm, net weight of 12.0g (Typ.). As a VMW, Normally Black, Transflective LCM product, LT040MDT9000 can provides 390 cd/m² display brightness 700:1 transimissive contrast ratio, 10:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LT040MDT9000 utilizes MDDI/MIPI as it's signal inputting systerm, which connected by 27 pins FPC with power supply voltage of 1.8/2.8V (Typ.)(VDDIO/VDC). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.
