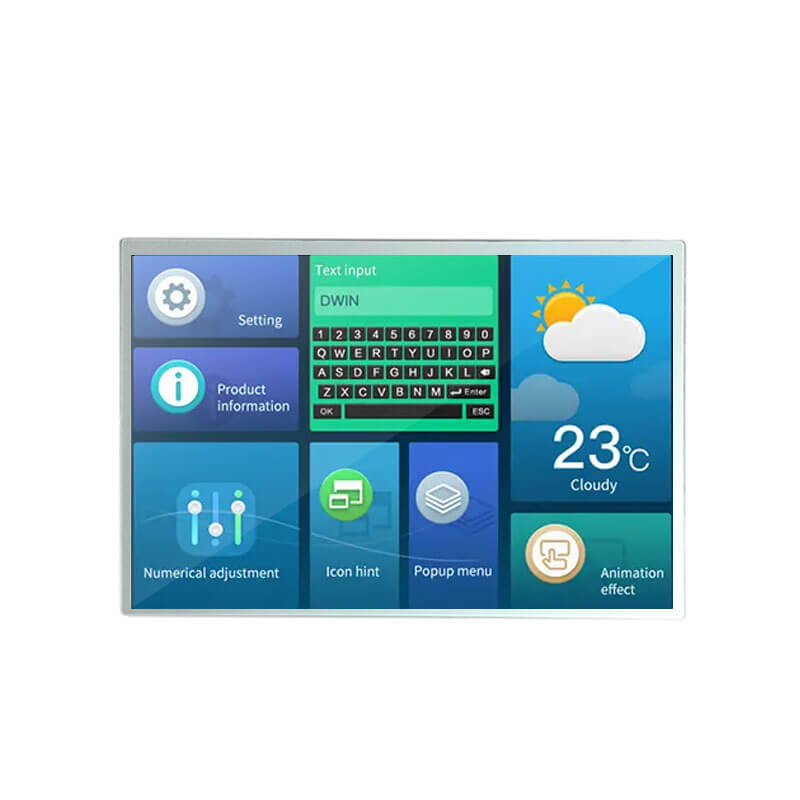

LS121K1LX02 Sharp 12.1 Inch TFT LCD Display 1280×800 LVDS LCD Module

LS121K1LX02 Overview

LS121K1LX02 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. LS121K1LX02 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.8(D) mm, viewing area size of 264.3(W)×167.2(H) mm, with surface treament of Hard coating (3H), net weight of 500g (Max.). As a ASV, Normally Black, Transmissive LCM product, LS121K1LX02 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LS121K1LX02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

LS121K1LX02 Feature

-WLED Backlight
-With WLED Driver
-Life≥70K hours
- 6-bit / 8-bit
-180 °C Reverse

Screen Size: 12.1 inch
Resolution: 1280x800
Brand:Sharp
LS121K1LX02 Sharp 12.1 Inch 1280×800 LVDS TFT LCD Display.

LS121K1LX02 Service & Technology

LS121K1LX02 Application
