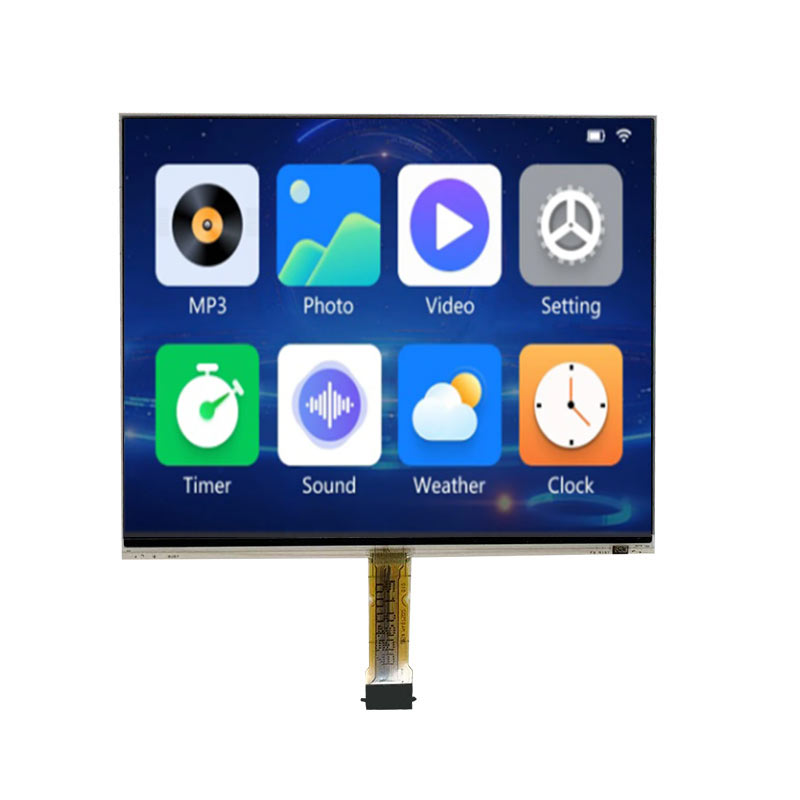

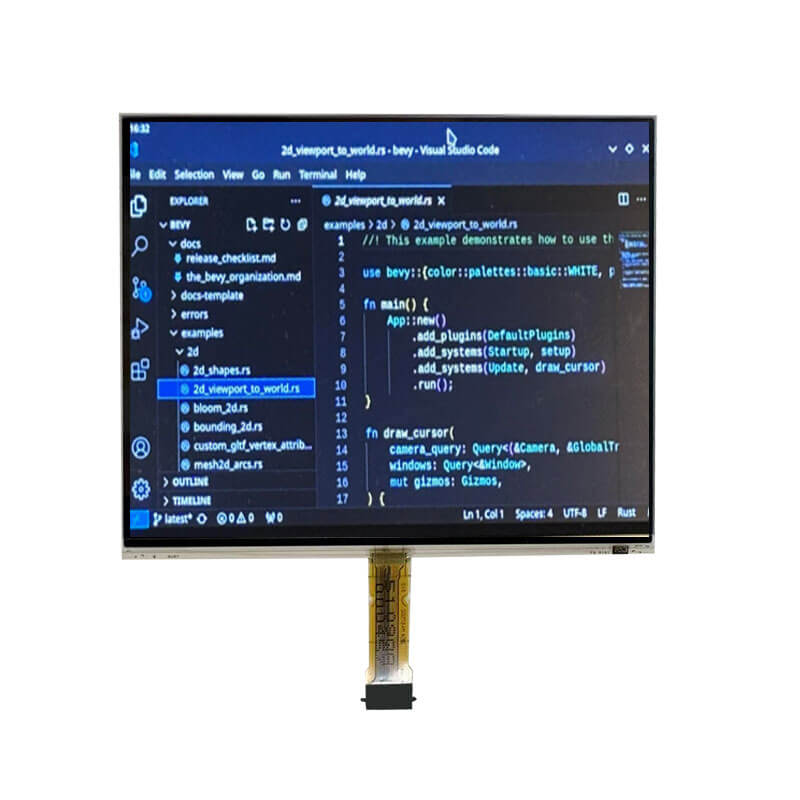

LS035Q7DD01 Sharp 3.54 inch 320x240 Memory-in-Pixel LCD Display With 6-bit parallel Industrial LCD Display

LS035Q7DD01 Overview

LS035Q7DD01 is a 3.5 inch diagonal CG-Silicon display screen product from Sharp, without backlight, without touch screen.LS035Q7DD01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 72(W)×54(H) mm, outline size of 74.84(W)×59.92(H) mm, with surface treament of Hard coating, net weight of 8.20g (Max.). As a Reflective LCM product, LS035Q7DD01 can provides , 25:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 20/20 (Typ.)(Tr/Td) ms., thus presenting a palette of 64 colors, also with performance of color gamut 18% (NTSC).

LS035Q7DD01 Feature

-Reflective

-Landscape type

-Sunlight Readable

Screen Size:3.54 inch

Resolution:320x240

Brand:Sharp

LS035Q7DD01 Sharp 3.54 inch Sunlight Readable 320x240 LCD Panel.

LS035Q7DD01 Application

For Handheld&PDA,Industrial LCD.

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
