LS029B3SX06A Sharp 2.9 Inch LCD 2160x2160 MIPI Square Memory-in-Pixel LCD Display For HMD AR VR

Overview

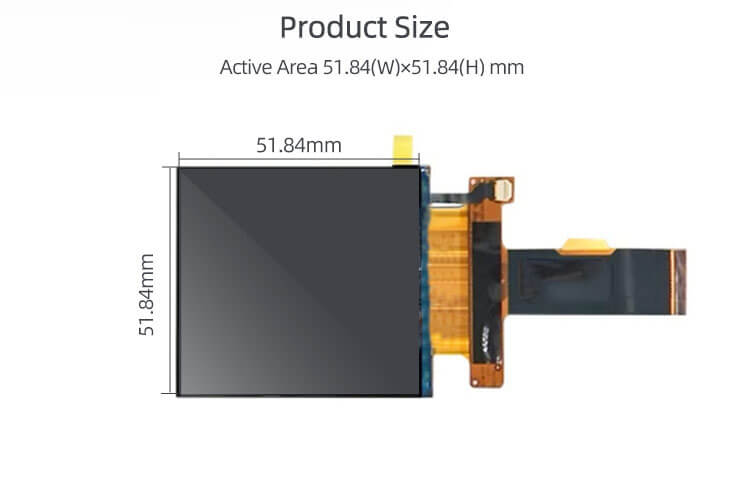

LS029B3SX06A is a 2.9 inch diagonal CG-Silicon display screen product from Sharp, with a built-in WLED backlight, without backlight driver, without touch screen. LS029B3SX06A supports display 2160(RGB)×2160 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. It features active area of 51.84(W)×51.84(H) mm, outline size of 54.24(W)×59.32(H)×1.52(D) mm, net weight of 7.80g (Typ.). As a SFR, Normally Black, Transmissive LCM product, LS029B3SX06A can provides 100 cd/m² display brightness 700:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 3/5.3 (Typ.)(Tr/Td) ms.

Feature
-sRGB
-WLED Backlight
-Display Colors:16.7M (8-bit)

Screen Size:2.9 inch
Resolution:2160x2160
Brand:Sharp
LS029B3SX06A Sharp 2.9 Inch 2160x2160 LCD Display

Application
For HMD AR VR & Industrial LCD.

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
