LS027B7DH01A Overview

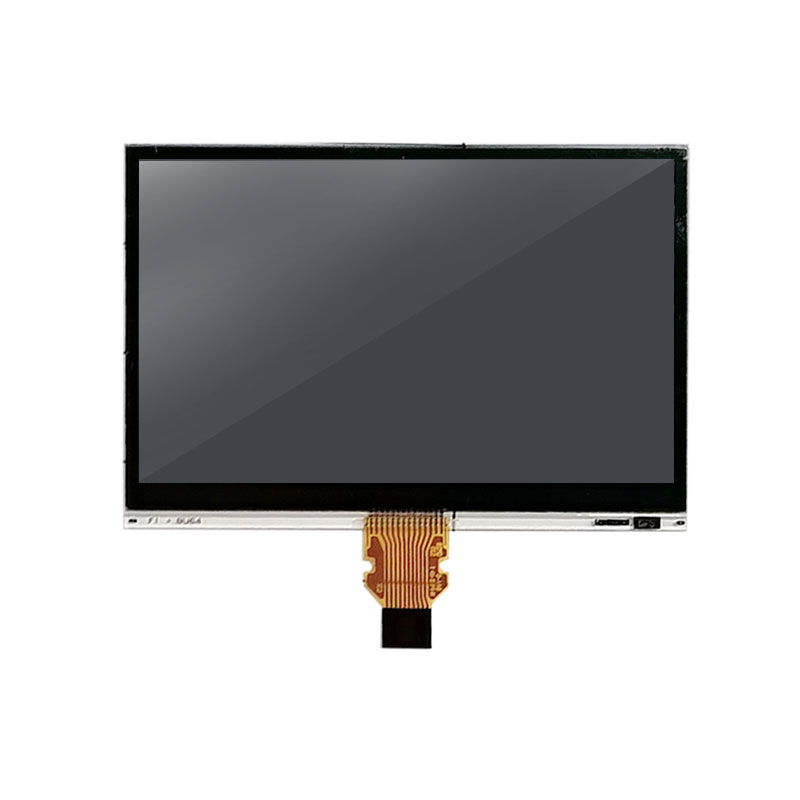

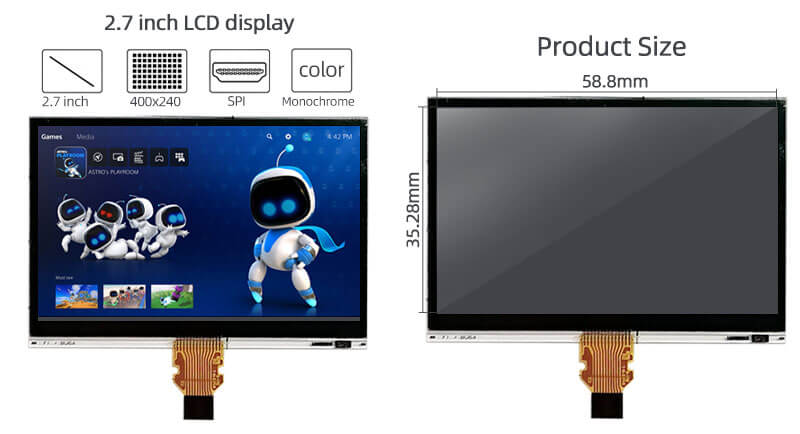

LS027B7DH01A supports display 400×240 (WQVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in Rectangle. It features active area of 58.8(W)×35.28(H) mm, outline size of 62.8(W)×42.82(H)×1.74(D) mm, with surface treament of Hard coating (3H), net weight of 9.90g (Typ.). As a TN, Normally White, Reflective LCM product, LS027B7DH01A can provides , 14:1 (Typ.) reflective contrast ratio, 55/55/60/60 (Min.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. LS027B7DH01A utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 5.0/5.0V (Typ.)(VDD/VDDA).
Application
For Industrial.
