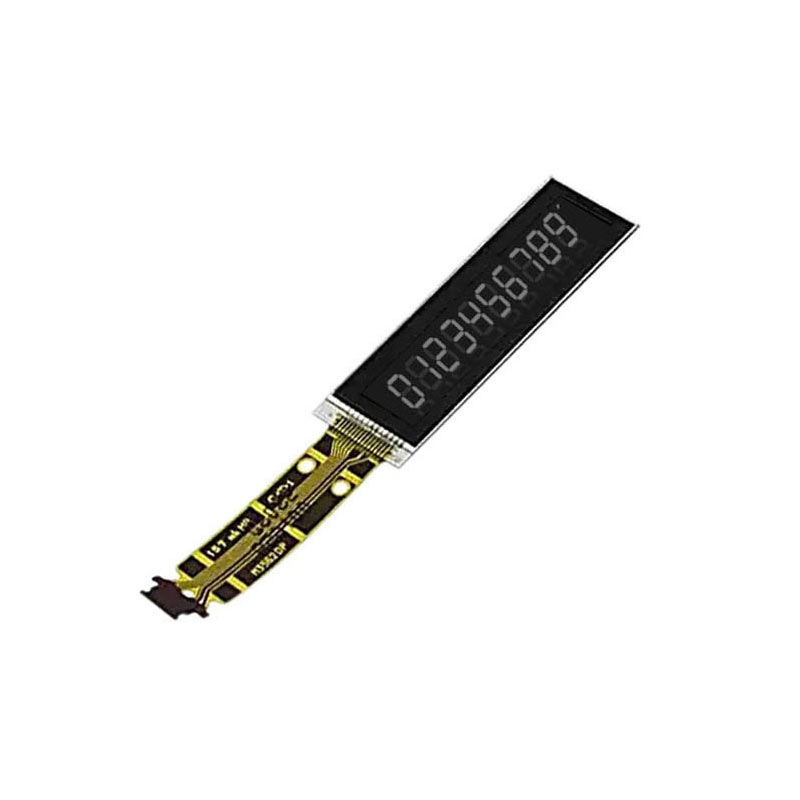

LS012B7DD01 1.2 inch Memory-in-Pixel LCD Display Sunlight Readable 184x38 Low Power Consumption MIP Display

LS012B7DD01 Overview

LS012B7DD01 is a 1.2 inch diagonal CG-Silicon display screen product from Sharp, without backlight, without touch screen.LS012B7DD01 supports display 184×38 with aspect ratio of >3:1 (W:H), whose pixels are arranged in Rectangle.It features active area of 29.072(W)×6.004(H) mm, outline size of 35.1(W)×11(H)×0.85(D) mm, with surface treament of Hard coating (3H), net weight of 0.60g. As a TN, Normally White, Reflective LCM product, LS012B7DD01 can provides , 22:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle .

LS012B7DD01 Feature

-Reflective
-Low Power Consumption
-Sunlight Readable

Screen Size:1.2 inch
Resolution:184x38
Brand:Sharp
LS012B7DD01 1.2 inch 184x38 Sunlight Readable Strip LCD Screen.

LS012B7DD01 Application

For Wearable & Industrial LCD.

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
