LQ170E1LW22 Sharp 17 Inch TFT LCD Display 1280x1024 LVDS LCD Screen For Gaming

LQ170E1LW22 Overview

LQ170E1LW22 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H)×13.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.20Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ170E1LW22 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LQ170E1LW22 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).

LQ170E1LW22 Feature

-WLED Backlight
-With WLED Driver
-Life≥70K hours
-Matte
-sRGB
-DCI-P3
-Wide Color Gamut

Screen Size: 17 inch
Resolution: 1280x1024
Brand:Sharp

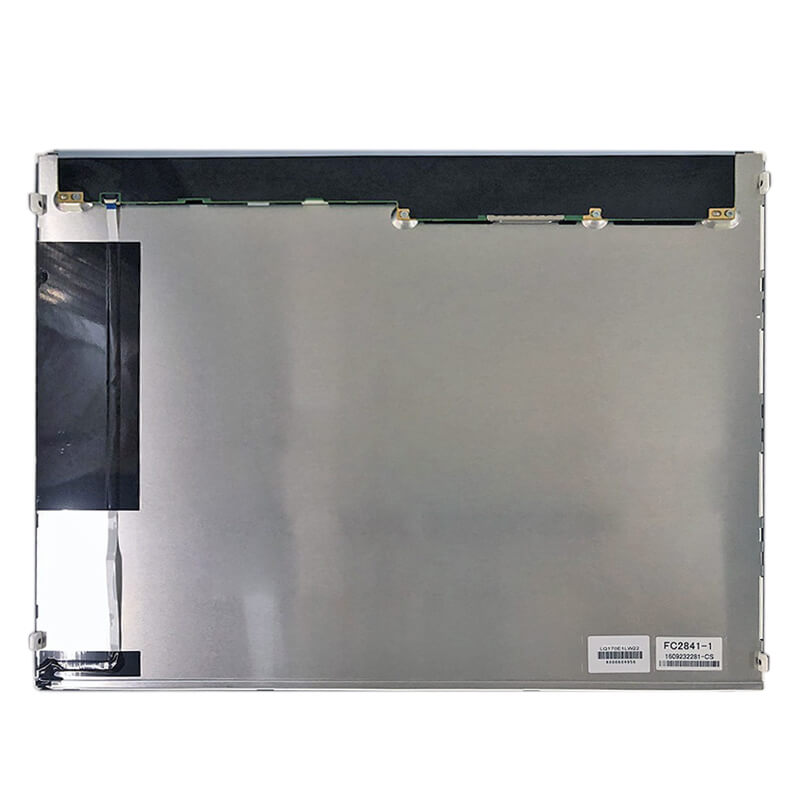

LQ170E1LW22 Sharp 17 Inch 1280x1024 LVDS TFT LCD Display.

LQ170E1LW22 Service & Technology

LQ170E1LW22 Application
