LQ156T3LW05 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen. LQ156T3LW05 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×11.3(D) mm, viewing area size of 347.54(W)×196.83(H) mm, with surface treament of Hard coating (2H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ156T3LW05 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 76% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LQ156T3LW05 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-WLED Backlight
-With WLED Driver
-Life≥70K hours
-Upside I/F
Screen Size: 15.6 inch
Resolution: 1366x768
Brand:Sharp

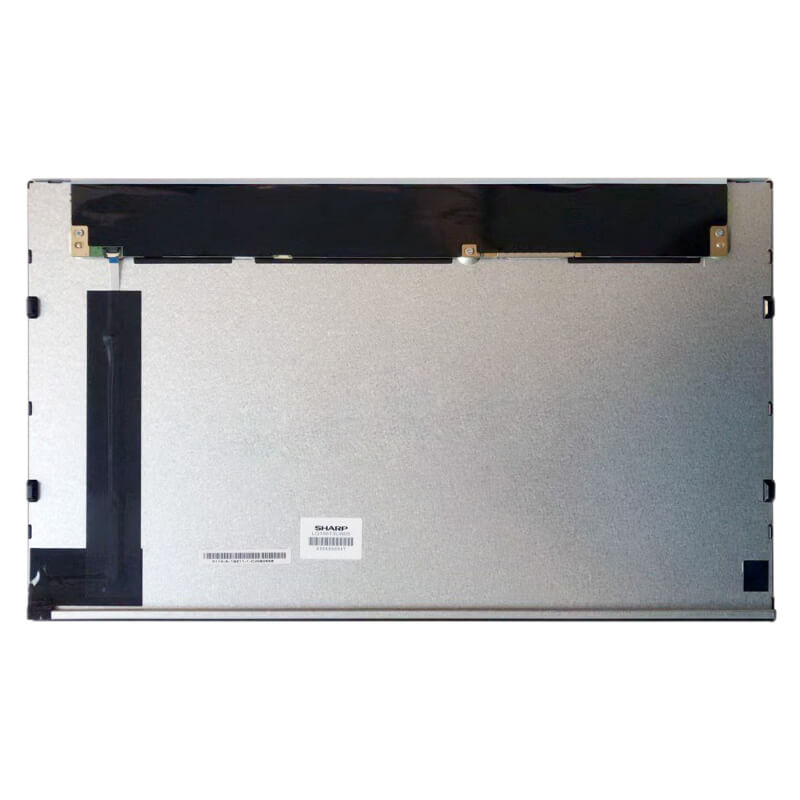

LQ156T3LW05 Sharp15.6 Inch 1366x768 LVDS TFT LCD Display.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
