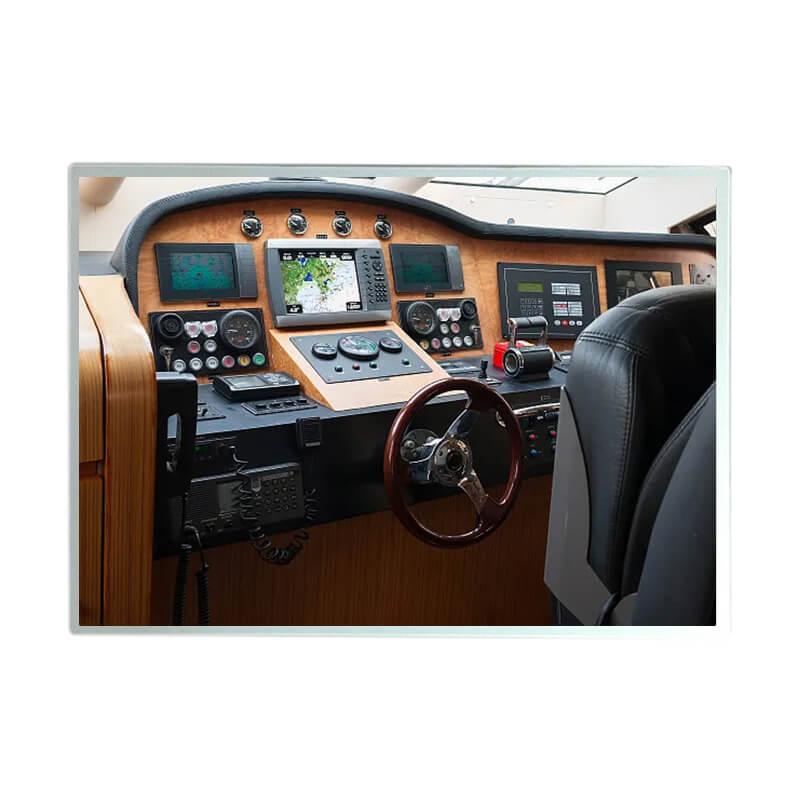

LQ150X1LX92 Sharp 15 Inch TFT LCD Display 1024x768 LVDS LCD Module

LQ150X1LX92 Overview

LQ150X1LX92 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LX92 can provides 270 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LQ150X1LX92 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

LQ150X1LX92 Feature

-WLED Backlight
-With WLED Driver
-Life≥70K hours
- 6-bit / 8-bit
-180 °C Reverse
-Matte

Screen Size: 15 inch
Resolution: 1024x768
Brand:Sharp
LQ150X1LX92 Sharp 15 Inch 1024x768 LVDS TFT LCD Display.
