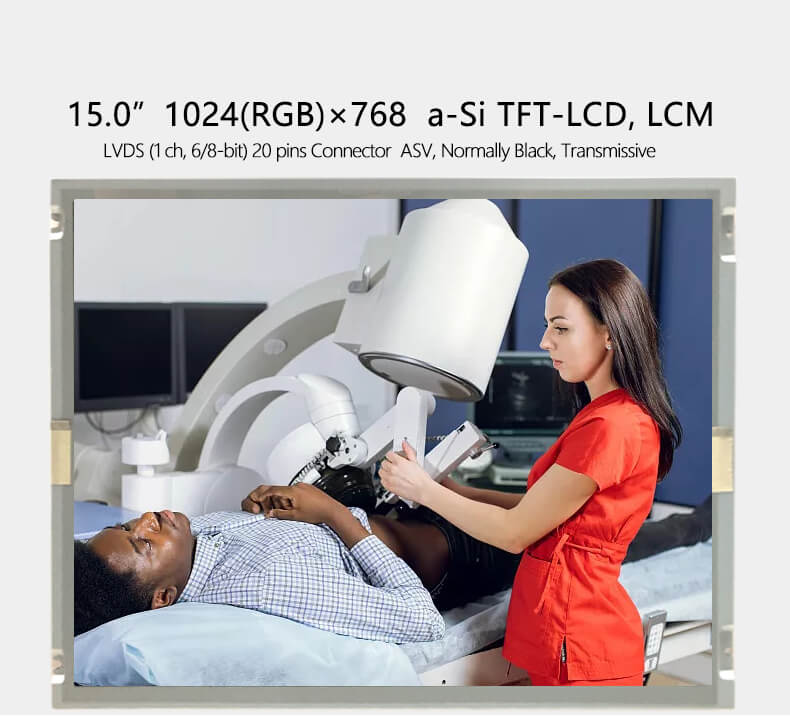

LQ150X1LW12 Sharp 15 Inch TFT LCD Display 1024×768 LVDS LCD Panel

LQ150X1LW12 Overview
LQ150X1LW12 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.LQ150X1LW12 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 331.6(W)×254.7(H)×9.8(D) mm, viewing area size of 307.2(W)×231.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LW12 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. LQ150X1LW12 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.
