LQ104S1LG81 Sharp 10.4 Inch TFT LCD Display 800x600 LVDS Wide Temperature LCD Module

  • Part No.:LQ104S1LG81
  • Size:10.4″ inch
  • Resolution:800x600
  • Panel Interface:LVDS (1 ch,6-bit)
  • Display mode:TN,Transmissive
  • Outline Dimension:246.5(W)x179.3(H)mm
  • Active Area:211.2(W)x158.4(H)mm
  • Viewing Angle L/R/U/D:70/70/50/70 (Typ.)
  • Brightness(cd/m2):420cd/m²(Typ.)
  • Operation / Storage Temp:-30~80°C / -30~80°C
  • Touch:no

LQ104S1LG81 Overview

LQ104S1LG81 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen. LQ104S1LG81 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.3(H)×13(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 500g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104S1LG81 can provides 420 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 42% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ104S1LG81 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

LQ104S1LG81 Feature

-Wide Temperature
-WLED Backlight
-With WLED Driver
-Life≥50K hours
- L/R Reverse
-Matte

Screen Size:10.4 inch
Resolution:800x600
Brand:Sharp
LQ104S1LG81 Sharp 10.4 Inch 800x600 LVDS Wide Temperature TFT LCD Display.

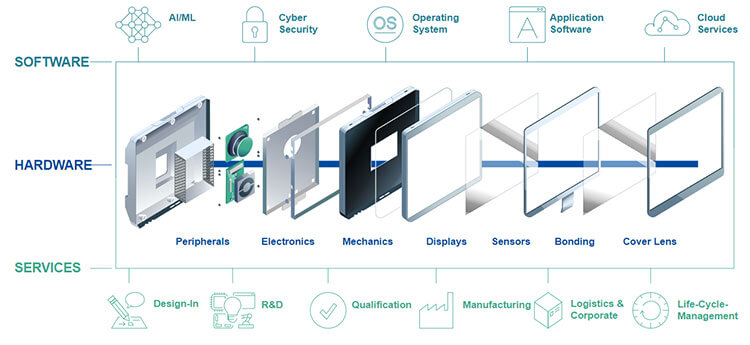

LQ104S1LG81 Service & Technology

LQ104S1LG81 Application
