LQ064X3LW02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 129.792(W)×97.344(H) mm, outline size of 153.4(W)×122(H)×9.9(D) mm, viewing area size of 133.792(W)×101.344(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 220g. As a ASV, Normally Black, Transmissive LCM product, LQ064X3LW02 can provides 390 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 70K hours, With LED Driver. LQ064X3LW02 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-WLED Backlight
-With LED Driver
-Life≥70K hours
-Matte
Screen Size:6.4 inch
Resolution:1024x768
Brand:Sharp

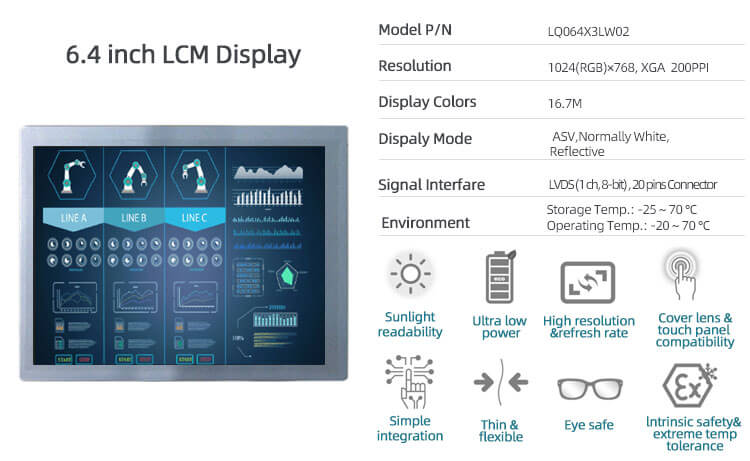

LQ064X3LW02 Sharp 6.4 Inch 1024x768 LVDS TFT LCD Display.
