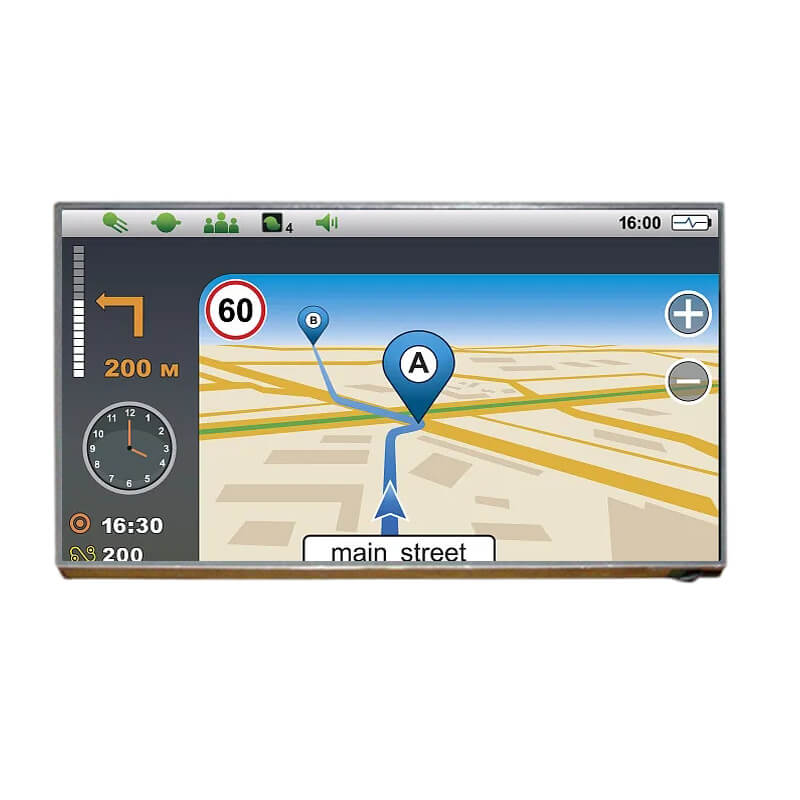

LQ048Y3DG01 Sharp 4.8 Inch TFT LCD Display 800x480 Parallel RGB SPI LCD Panel With 4-wire Resistive Touch

LQ048Y3DG01 Overview

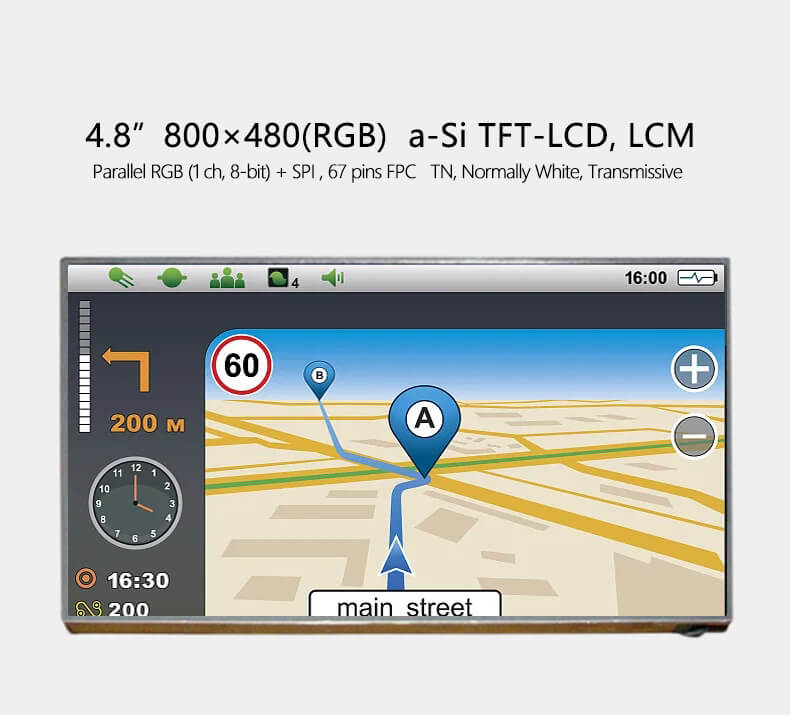

LQ048Y3DG01 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 104.4(W)×62.64(H) mm, outline size of 116.5(W)×77.9(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 76.0g. As a TN, Normally White, Transmissive LCM product, LQ048Y3DG01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/55/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LQ048Y3DG01 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 1.8/2.85V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.
