LQ043T1DG18 Overview

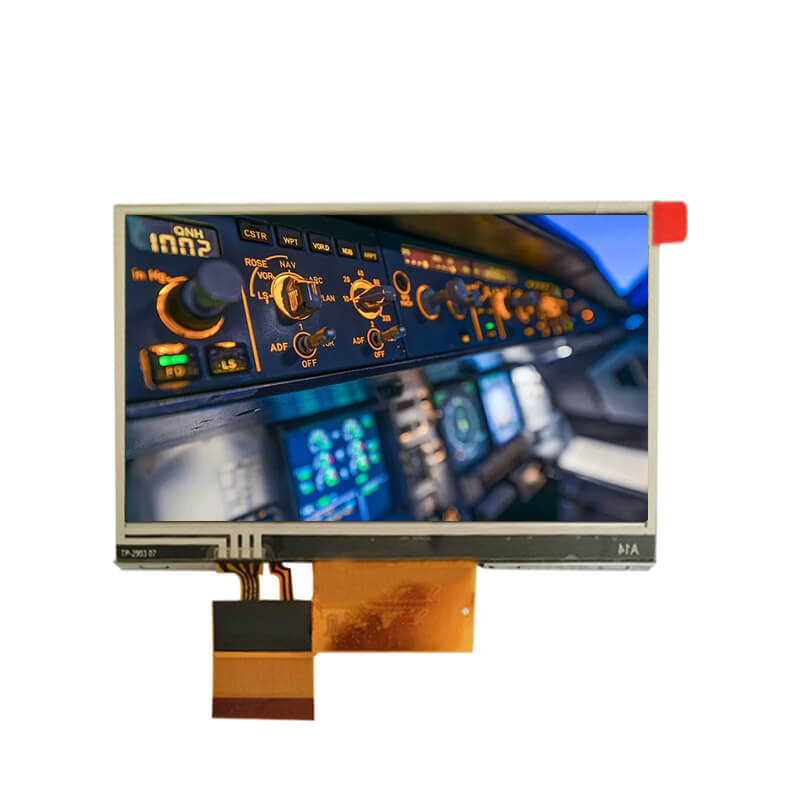

LQ043T1DG18 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H). As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Antiglare, net weight of 51.0g. As a TN, Normally White, Transmissive LCM product, LQ043T1DG18 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/55/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8/22 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LQ043T1DG18 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.).
Application
For Industrial.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
