LQ035Q7DH08 Sharp 3.5 Inch TFT LCD Display 240×320 Transflective Sunlight Readable LCD Panel With 4-wire Resistive Touch

LQ035Q7DH08 Overview

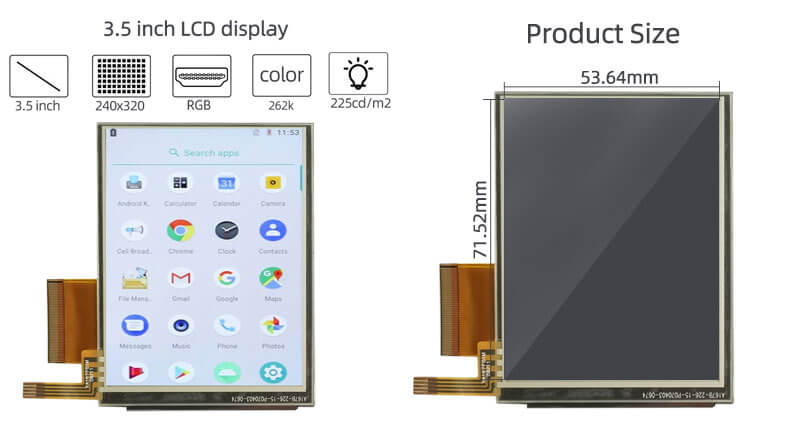

LQ035Q7DH08 supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.64(W)×71.52(H) mm, outline size of 65(W)×86.2(H)×4.2(D) mm, viewing area size of 57.4(W)×75.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 45.0g. As a TN, Normally White, Transflective LCM product, LQ035Q7DH08 can provides 225 cd/m² display brightness 80:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 45/45/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LQ035Q7DH08 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 5.0/3.3/15.0/-10V (Typ.)(VSHA/VSHD/VDD/VEE). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.
