LPM013M091A 1.34 inch Round LCD Transflective Sunlight Readable 320x300 Panel MIPI Interface Circle LCD Display For Smart Watch Application

LPM013M091A Overview

LPM013M091A supports display 320(RGB)×300 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 34.08(W)×31.95(H) mm, outline size of 37.28(W)×38.18(H)×1.75(D) mm, with surface treament of Hard coating (2H), net weight of 2.80g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM013M091A can provides , 20:1 (Typ.) reflective contrast ratio, 60/65/65/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 23% (NTSC).

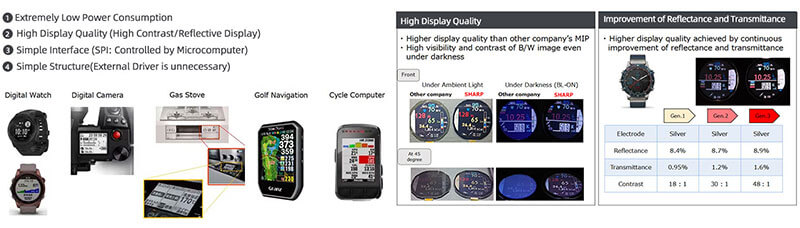

LPM013M091A Feature

-Circular Display
-Reflective
-Sunlight Readable
-WLED Backlight

Screen Size:1.34 inch
Resolution:320x300
Brand:JDI

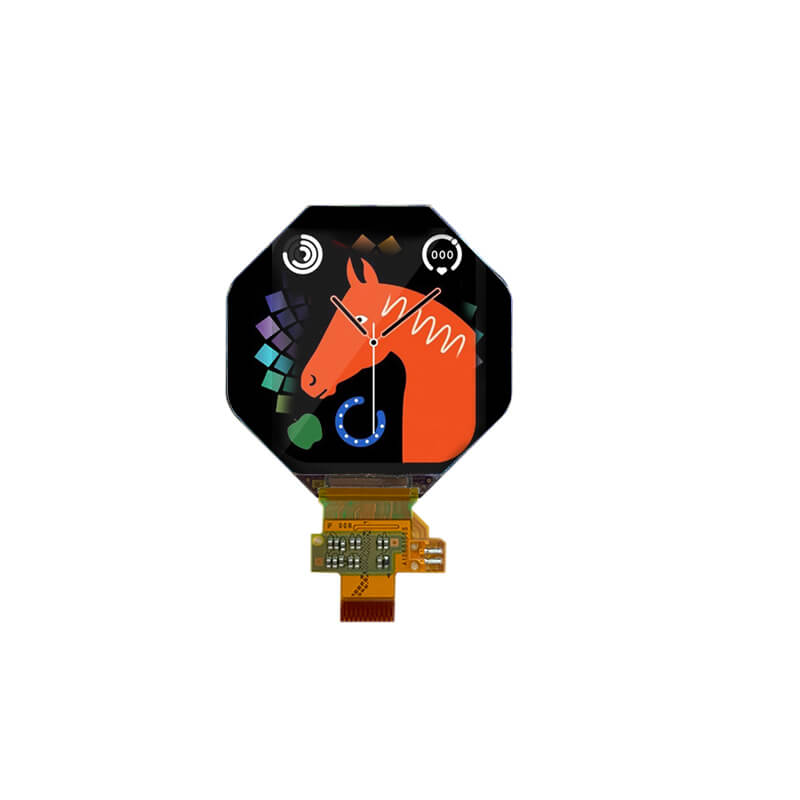

LPM013M091A JDI 1.34 inch 320x300 Sunlight Readable Round LCD Display.

LPM013M091A Application

For Wearable & Industrial LCD.

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
