LPM012M387D JDI 1.2 Inch Round LCD Display 240x240 Reflective Circular TFT LCD For Wearable

LPM012M387D Overview
LPM012M387D is a 1.2 inch diagonal LTPS TFT-LCD display screen product from JDI, without backlight, without touch screen.LPM012M387D supports display 240(RGB)×240 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 30.456(W)×30.456(H) mm, outline size of 33.04(W)×33.94(H) mm, with surface treament of Hard coating (2H), net weight of 1.70g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM012M387D can provides , 20:1 (Typ.) reflective contrast ratio, 60/65/65/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 2-bit gray scale signal for each dot, thus presenting a palette of 64 colors, also with performance of color gamut 23% (NTSC).

Screen Size:1.2 inch
Resolution:240x240
Brand: JDI

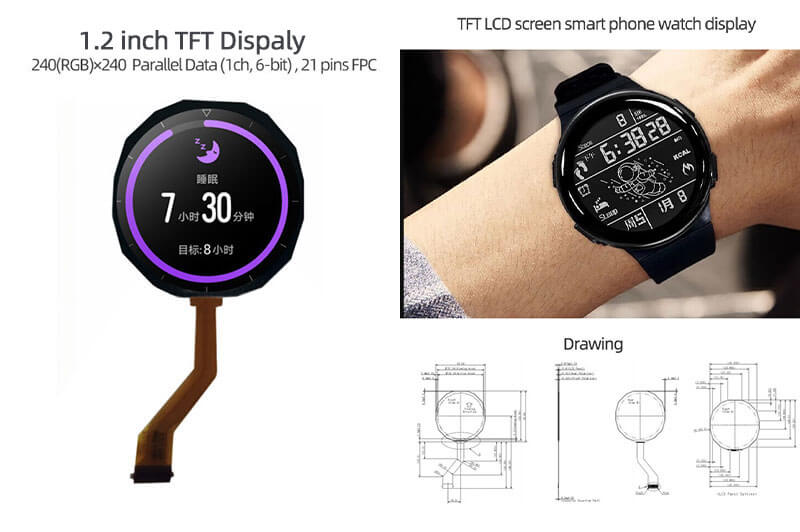

1.2 Inch 240x240 Reflective Round LCD Display.

Application
For Wearable.
