Product size
|
23.8-inch
|
Type
|
a-Si TFT-LCD, LCM
|
|
Pixel Format
|
1920(RGB)×1080 [FHD] 92PPI
|
Configuration
|
RGB Vertical Stripe
|
|

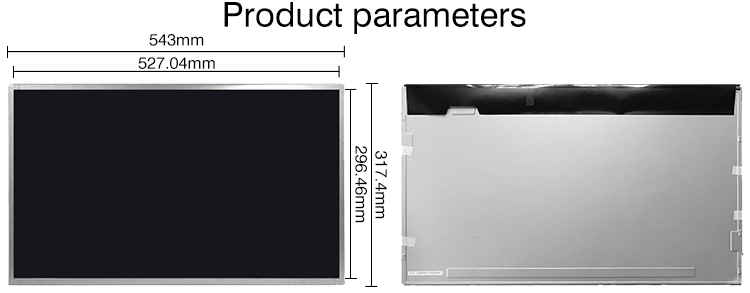

Active Area
|
527.04(H)×296.46(V) mm
|
Outline Dim.
|
543(H)×317.4(V) ×11.4(D) mm
|
|
Bezel Area
|
530.2(H)×299.6(V) mm
|
Treatment
|
Antiglare (Haze 25%), Hard coating (3H)
|
|
Luminance
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
1000:1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
14 (Typ.)(G to G)
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|
Support Color
|
16.7M 72% NTSC
|
Light Source
|
WLED [3 strings] , 30K hours , W/O Driver
|
|
Weight
|
2.39Kgs (Typ.)
|
Designed For
|
Desktop Monitor
|
|
Frequency
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
LVDS (2 ch, 8-bit) , 30 pins Connector
|
||
|
Power Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
