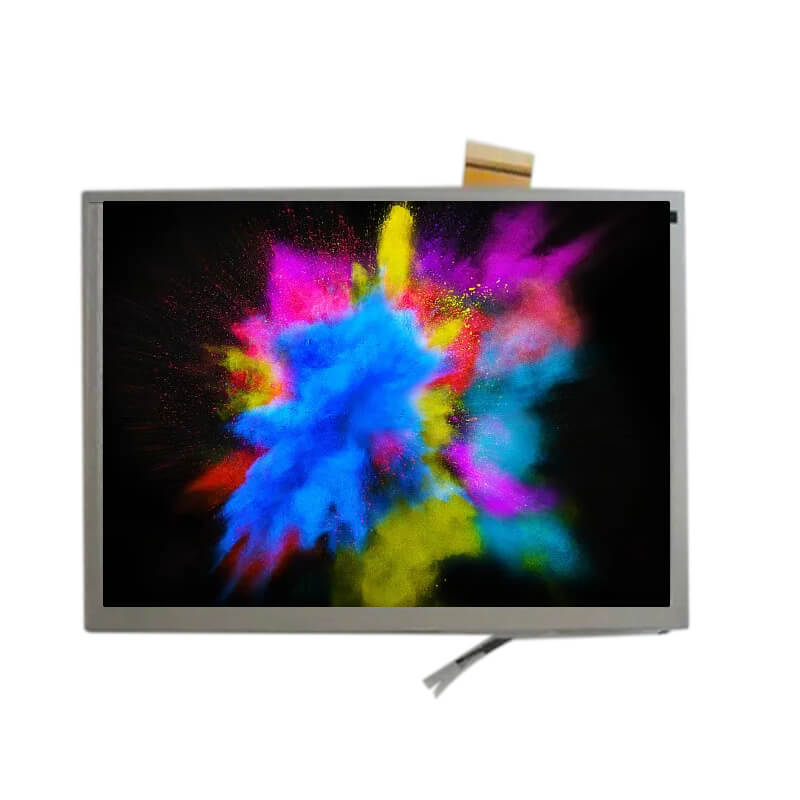

LB070WV1-TD04 Overview
LB070WV1-TD04 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system. LB070WV1-TD04 supports display (WVGA) with aspect ratio of 15:9 (W:H). As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm. As a TN, Normally White, Transmissive LCM product, LB070WV1-TD04 can provides 500 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted CCFL as it's backlight systerm which was placed as Edge light type. LB070WV1-TD04 utilizes TTL as it's signal inputting systerm.
Application
For Industrial.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
