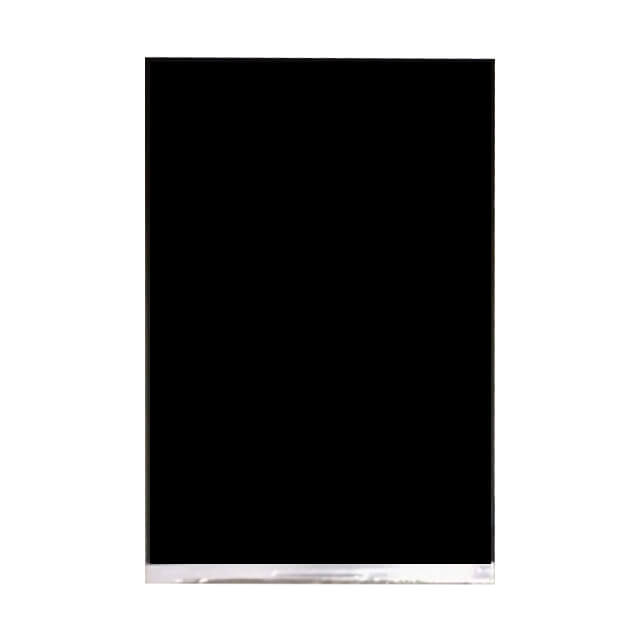

| LCD SPECIFICATION | |||
| Diagonal Size | 8.0 inch | Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×1280 [WXGA] | Configuration | RGB Vertical Stripe |

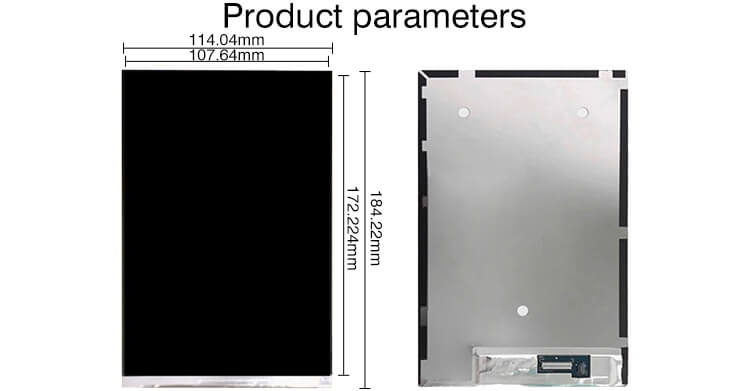

| Display Area | 107.64(H)×172.224(V) mm | Outline Dim. | 114.04(H)×184.22(V) ×4.45(D) mm |
| Outline Size | - | Surface | Hard coating |
| Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Tf) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 58% NTSC | Light Source | WLED [6S3P] |
| Weight | 117g (Max.) | Designed For | Pad & Tablet |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) | ||
| Power Supply | 1.8/3.3V (Typ.)(VDD/VCC) | ||
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
