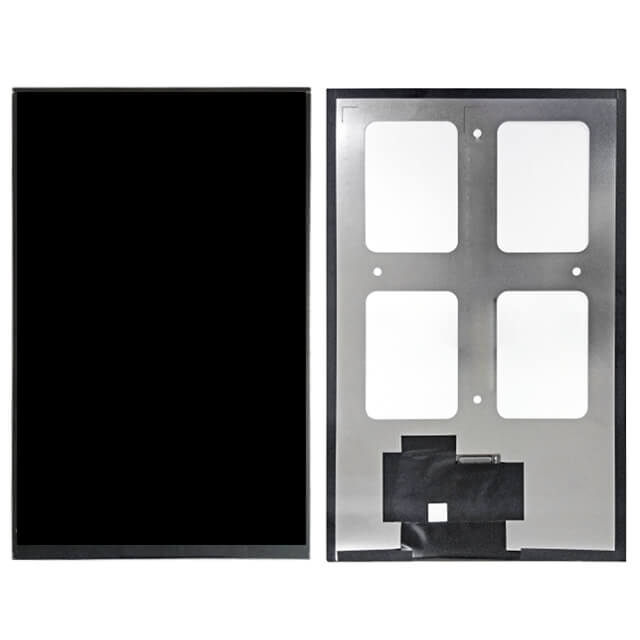

| LCD SPECIFICATION | |||
| Diagonal Size | 8.0 inch | Type | LCM , a-Si TFT-LCD |
| Pixel Format | 800(RGB)×1280 (WXGA) | Configuration | RGB Vertical Stripe |
| Display Area | 107.64 × 172.224 (H×V) | Outline Dim. | 114.7 × 184.2 (H×V×D) |
| Outline Size | - | Surface | Hard coating (3H) |
| Luminance | 360 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 55% NTSC | Light Source | 3S7P WLED , No Driver |
| Weight | 105g (Max.) | Designed For | Pad & Tablet |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) , 34 pins Connector | ||
| Power Supply | 1.8/3.3V (Typ.)(VDD1/VDD3) | ||
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 65 °C | ||
