H139BLN01.0 AUO 1.39 Inch Round OLED 400x400 Sunlight Readable Circular Amoled For Wearable

Part No.:H139BLN01.0
Size:1.39″ inch
Resolution:400x400
Panel Interface:MIPI (1 data lane)
Display mode:/
Outline Dimension:40.5(H)x38.6(V)mm
Active Area:35.4(H)x35.4(V)mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Overview

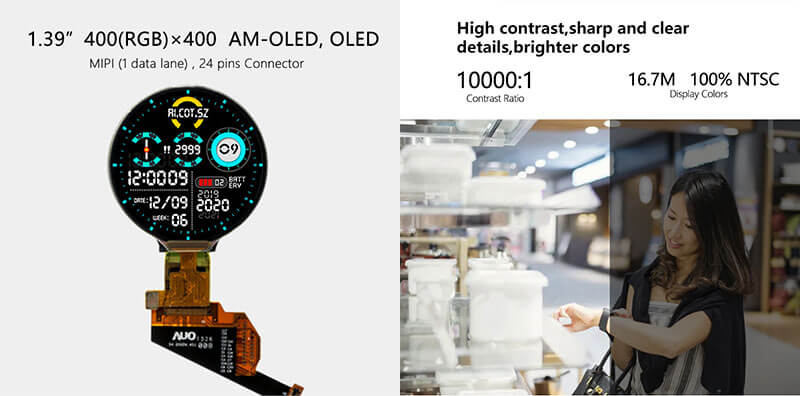

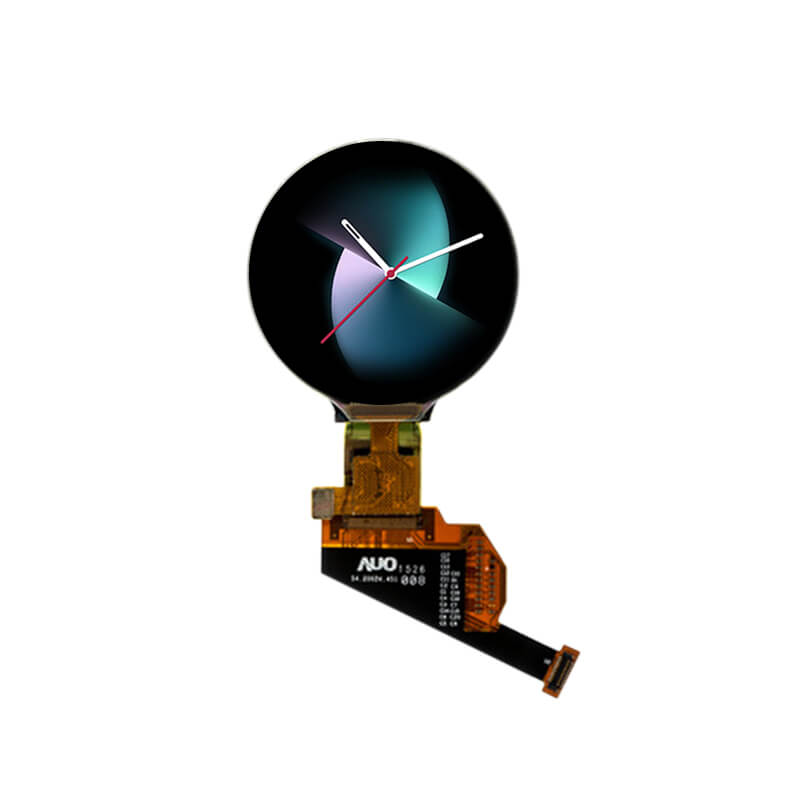

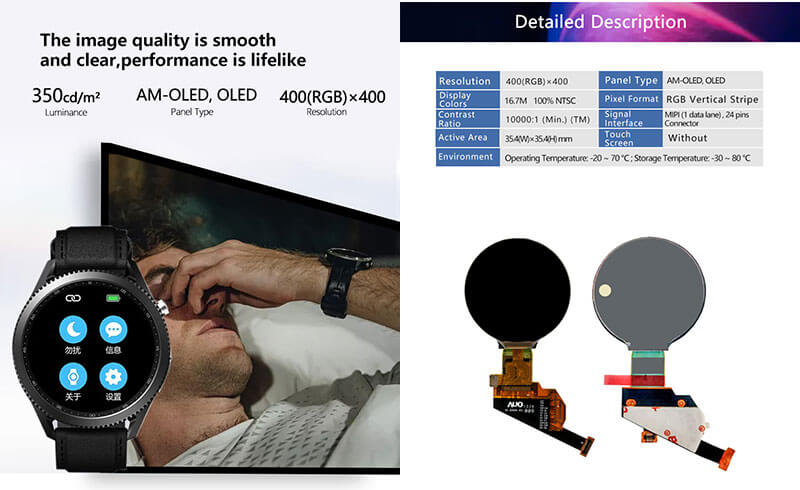

H139BLN01.0 is a 1.39 inch diagonal AM-OLED display screen product, it self emiting, without touch screen.H139BLN01.0 supports display 400(RGB)×400 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 287 PPI. As for mechanical detail, it features active area of 35.4(W)×35.4(H) mm, outline size of 40.5(W)×38.6(H)×0.79(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 2.15±0.33g. H139BLN01.0 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥1600) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2/2 (Typ.)(Tr/Td) ms.

Application
For Wearable,Industrial.
