| Product size | 3.4-inch | Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1440(RGB)×1700 651PPI | Configuration | RGB Vertical Stripe |

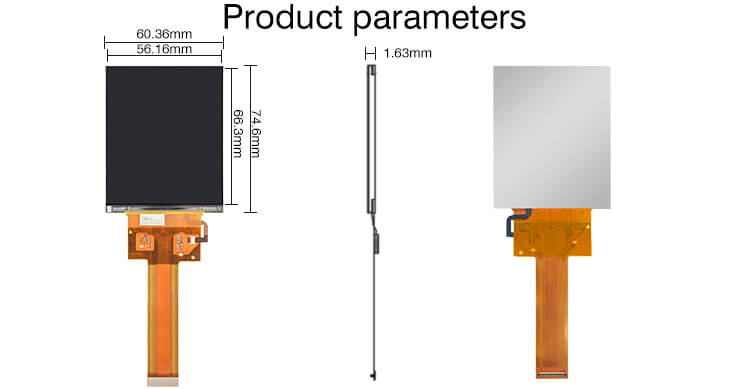

| Active Area | 56.16(H)×66.3(V) mm | Outline Dim. | 60.36(H)×74.6(V) mm |
| Bezel Area | - | Treatment | Hard coating |
| Luminance | 150 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 6/2 (Typ.)(Tr+Td) |
| Viewing Angle | - | Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 71% NTSC | Light Source | WLED [5S2P] , W/O Driver |
| Weight | 17.0g (Typ.) | Designed For | HMD VR AR |
| Frequency | 90Hz | Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) , 60 pins Connector | ||
| Power Supply |
1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
||
| Environment |
Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -30 ~ 60 °C |
||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
