G215HVN01.3 AUO 21.5 Inch TFT LCD Display 1920x1080 LVDS Interface High Brightness IPS LCD Module

G215HVN01.3 Overview

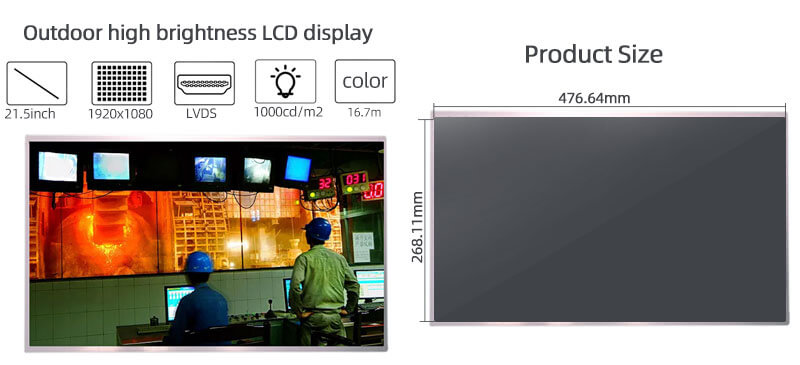

G215HVN01.3 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.G215HVN01.3 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×24.05(D) mm, viewing area size of 479.84(W)×271.31(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.63±0.16Kgs. As a VA, Normally Black, Transmissive LCM product, G215HVN01.3 can provides 1000 cd/m² display brightness 5000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC).

Feature
IPS
Landscape / Portrait

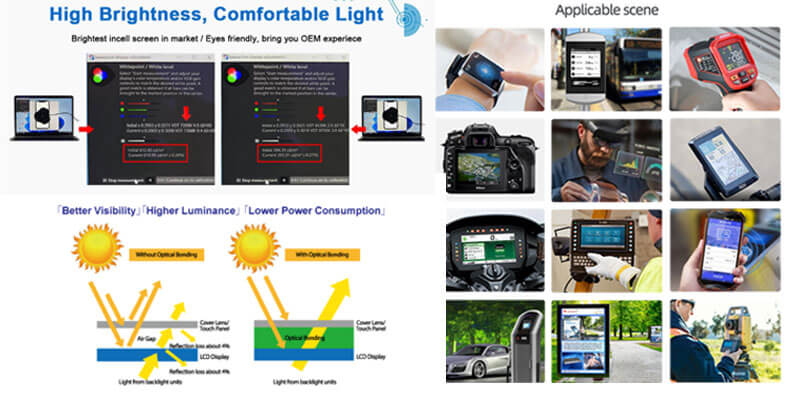

Ultra High Brightness 1000cd/m2
WLED Backlight
Life ≥ 50K hours
Reverse I/F
Matte

Application
For Outdoor high brightness,Medical Imaging,Industrial.
