G150XTN06.9 AUO 15 Inch TFT LCD Display 1024×768 Sunlight Readable Wide Temperature LCD Panel

G150XTN06.9 Overview

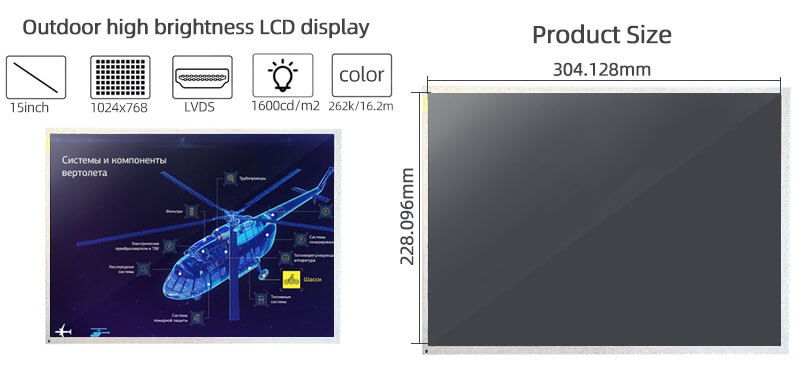

G150XTN06.9 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10(D) mm, viewing area size of 311.9(W)×236.85(H) mm, with surface treament of Antiglare, net weight of 1.00Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G150XTN06.9 can provides 1600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 60% (NTSC).

Feature
High Brightness 1600cd/m2
Wide Temperature

Application
For Outdoor high brightness.
