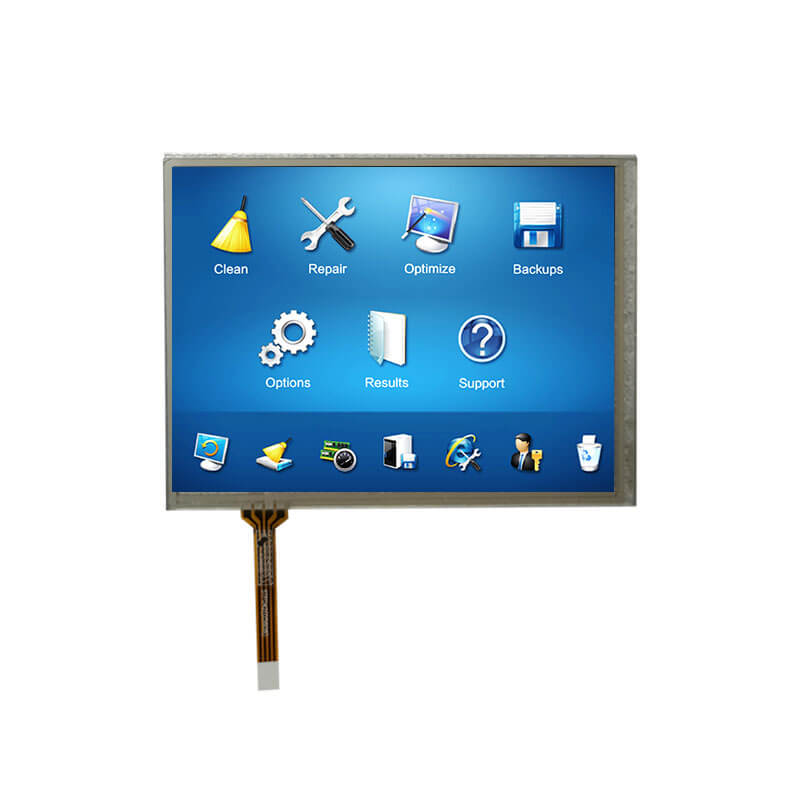

G057VN01 V220 AUO 5.7 Inch TFT LCD Display 640×480 Sunlight Readable Wide Temperature LCD Panel

G057VN01 V220 Overview
G057VN01 V220 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, G057VN01 V220 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. G057VN01 V220 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.
