Factory Wholesale 12.3 Inch 1920x1280 Resolution with eDP 40 Pins Connector LCD Display For Laptop Pad Table

Part No.:TV123WAM-ND0
Size:12.3″ inch
Resolution:1920x1280
Panel Interface:eDP (2 Lanes)
Display mode:ADS,Transmissive
Outline Dimension:265.26x184.76x4(HxVxD)
Active Area:259.2x172.8(HxV)
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

Products Description

TV123WAM-ND0

TV123WAM-ND0_01

Product size	12.3-inch	Type	LCM, a-Si TFT-LCD
Pixel Format	1920(RGB)×1280 188PPI	Configuration	RGB Vertical Stripe
Active Area	259.2 × 172.8 (H×V)	Outline Dim.	265.26 × 184.76 × 4 (H×V×D)
Bezel Area	-	Treatment	Hard coating
Luminance	400 (Typ.)(cd/m²)	Contrast Ratio	1200 : 1 (Typ.) (TM)
View Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 100% sRGB	Light Source	6S8P WLED , 15K hours , No Driver
Weight	Slim (PCBA Bent, T≤3.0mm)	Designed For	Laptop Pad & Tablet
Frequency	60Hz	Touch Panel	Without
Interface Type	eDP (2 Lanes) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

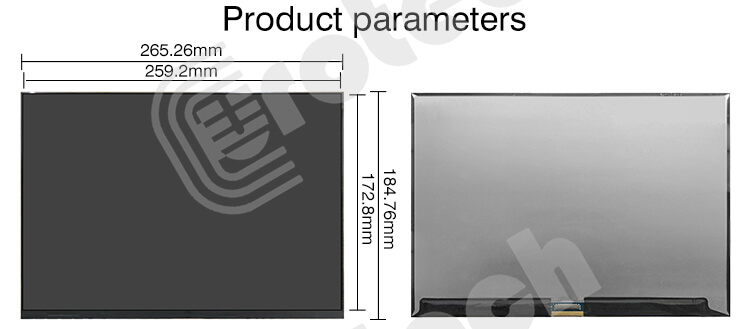

TV123WAM-ND0_02 TV123WAM-ND0_03 TV123WAM-ND0_04 TV123WAM-ND0_05
