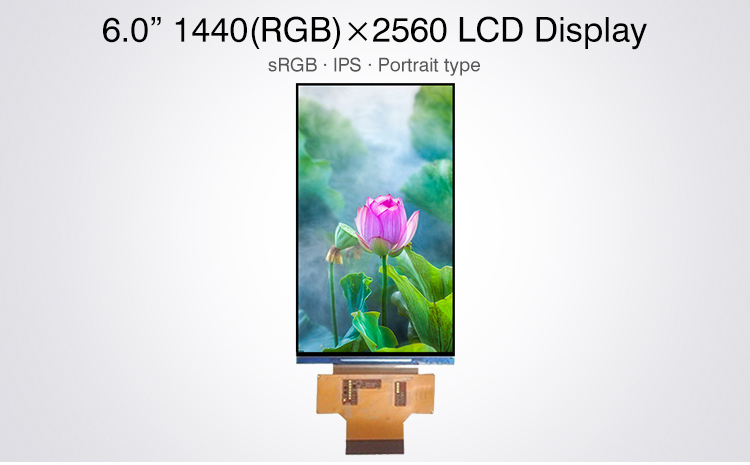

Factory Supply 6.0 Inch LCD Panel 1440*2560 High Resolution Display IPS Screen Module With MIPI interface

Part No.:H598QAN01.0
Size:6″ inch
Resolution:1440x2560
Panel Interface:MIPI
Display mode:AHVA,Transmissive

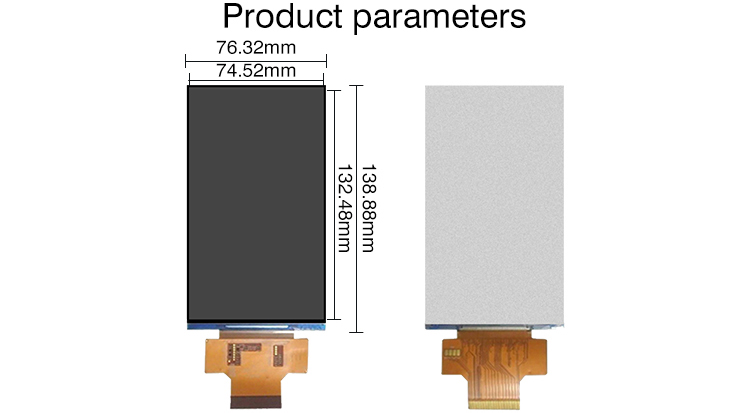

Outline Dimension:76.32(H)x138.88(V)
Active Area:74.52(H)x132.48(V)
Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
Brightness（cd/m2）:
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Product Description

Type	LTPS TFT-LCD , CELL
Panel size	6.0 inch
Pixel Number	1440(RGB)×2560, Quad-HD, 490PPI
Active Area	74.52(W)×132.48(H) mm
Viewing Angle	80/80/80/80
Signal Type	MIPI
Lamp Type	No B/L
Touchscreen	Without
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Contrast Ratio	1000:1 (Typ.) (TM)
Arrangement	RGB Vertical Stripe
