Factory supply 19 inch TFT IPS LCD Panel 1280x1024 Landscape LCD Module LVDS Interface High Contrast Display For Desktop Monitor

Part No.:MV190E0M-N10
Size:19″ inch
Resolution:1280x1024
Panel Interface:LVDS (2 ch,8-bit)
Display mode:ADS,Transmissive
Outline Dimension:396x324x10.4(HxVxD)
Active Area:374.784x299.827(HxV)
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:250cd/m²(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

Products Description

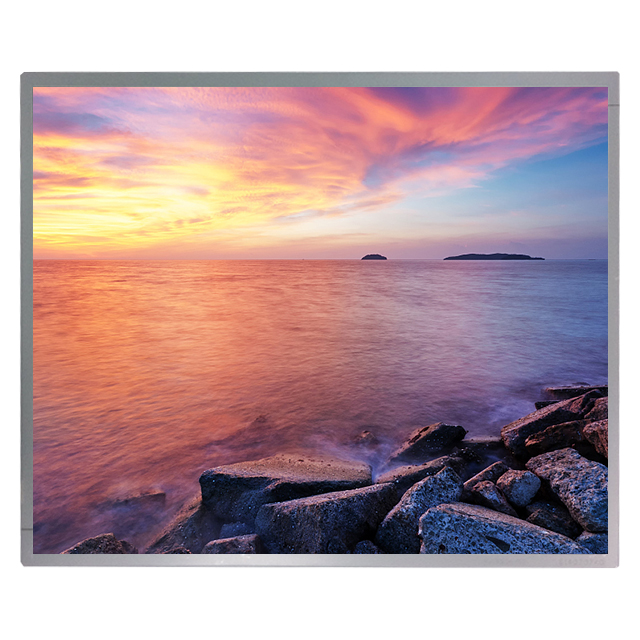

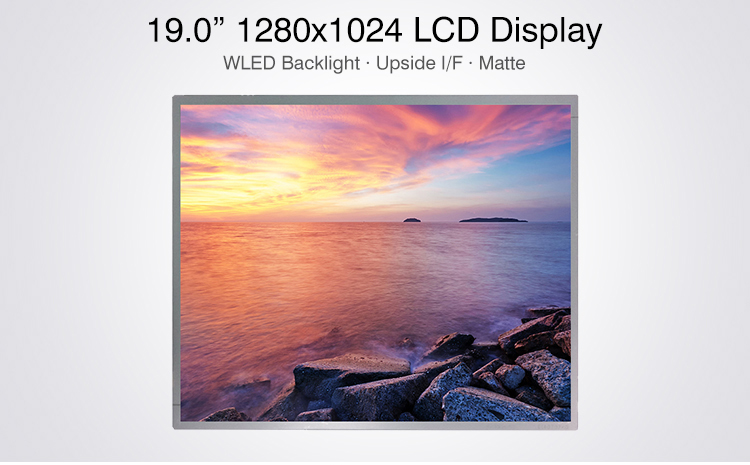

MV190E0M-N10 19.0-inch 1280x1024 IPS LCD Display LVDS interface-2

Product size	19.0-inch	Type	LCM , a-Si TFT-LCD
Pixel Format	1280(RGB)×1024 (SXGA) 86PPI	Configuration	RGB Vertical Stripe

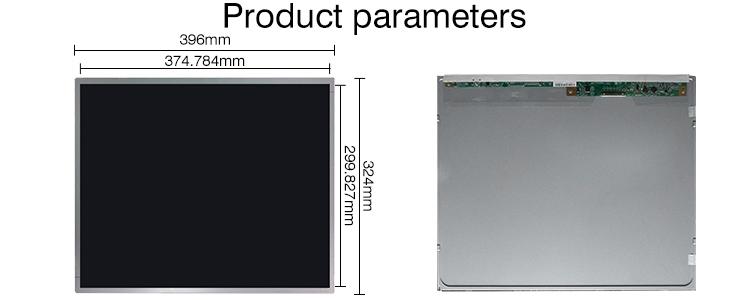

Active Area	374.784 × 299.827 (H×V)	Outline Dim.	396 × 324 × 10.4 (H×V×D)
Bezel Area	378.8 × 303.0 (H×V)	Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (TM)
View Direction	Symmetry	Response Time	8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 72% NTSC	Light Source	2 strings WLED , 30K hours , No Driver
Weight	1.69Kgs (Typ.)	Designed For	Desktop Monitor Industrial
Frequency	60Hz	Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

MV190E0M-N10_01 MV190E0M-N10_02 MV190E0M-N10_03 MV190E0M-N10_04 MV190E0M-N10_05
