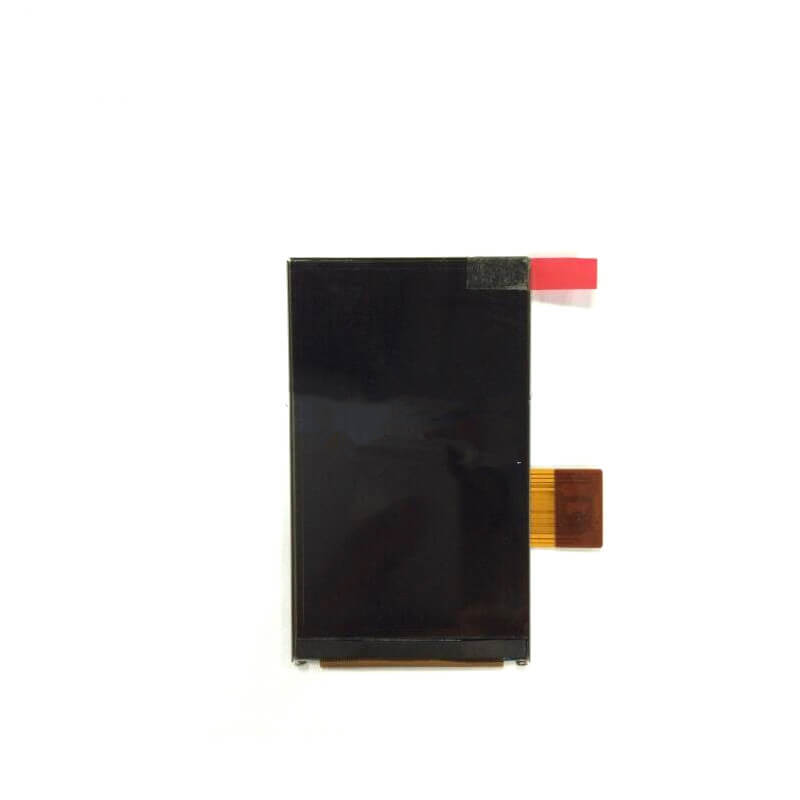

Factory 2.6 inch OLED Display AMDM001 With 240x400 Resolution AMOLED Display

Part No.:AMDM001
Size:2.6″ inch
Resolution:240x400
Panel Interface:CPU
Display mode:/
Outline Dimension:37.78x64.7mm(HxV)
Active Area:33.84x56.4mm(HxV)
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:200cd/m²(Typ.)
Operation / Storage Temp:-30~70°C / -40~85°C
Touch:no

Products Description

Panel Brand	Samsung	Panel Model	AMDM001
Panel Size	2.6 inch	Panel Type	AM-OLED , OLED
Resolution	240(RGB)×400 [WQVGA]	Pixel Format	RGB Vertical Stripe
Display Area	33.84(H)×56.4(V) mm	Luminance	200 cd/m² (Typ.)
Bezel Area	34.84(H)×57.4(V) mm	Outline	37.78(H)×64.7(V) ×2(D) mm
Treatment	Hard coating (3H)	D-IC Detail	Built-in D53E4EA7554
Viewing Angle	/	Contrast Ratio	2000:1 (Min.) (TM)
Good View at	Symmetry	Response	/
Interface Type	40 pins CPU , Connector	Light Source	self , 21K hours
Support Color	262K 106% (CIE1931)	Touchscreen	WITHOUT
Weight	/
Power Supply	1.8/2.8V (Typ.)(VCI/VDD2)
Environment	Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C

Company Profile

AMDM001_20071003_201403031261.pdf (3 MB) Downloads:210
