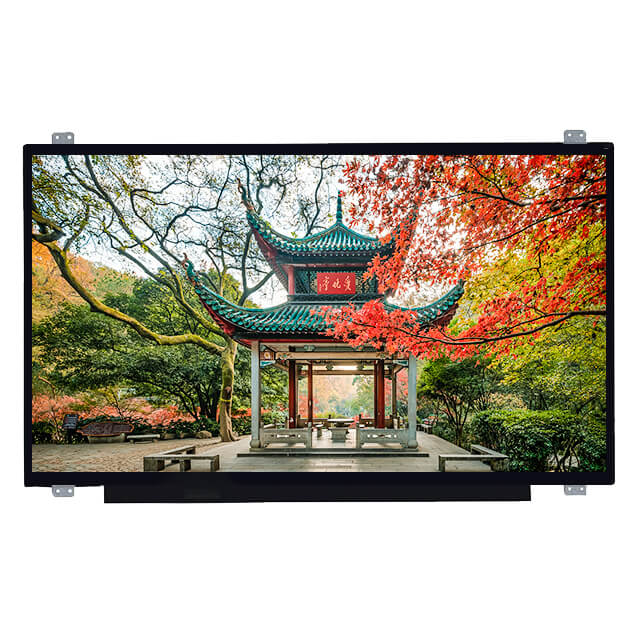

ET173WDM-N21 17.3 inch laptop led screen 1600x900 30pin lcd panel for blood analyser

Product size

17.3-inch

Type

LCM ,   a-Si TFT-LCD

Pixel Format

1600(RGB)×900   (HD+)  106PPI

Configuration

RGB Vertical Stripe

Active Area

382.08 × 214.92 (H×V)

Outline Dim.

398.1 × 250.5 × 4 (H×V×D)

Bezel Area

-

Treatment

Antiglare

Luminance

220 (Typ.)(cd/m²)

Contrast Ratio

500 : 1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

16 (Typ.)(Tr+Td) ms

Viewing Angle

45/45/15/30 (Min.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K   60% NTSC

Light Source

7S6P WLED , 15K hours , With LED Driver

Outline Shape

Flat (PCBA Flat, T3.4~4.0mm)

Designed For

Laptop

Frequency

60Hz

Touch Panel

Without

Interface Type

eDP (1 Lane) , eDP1.2 , 30 pins Connector

Power Supply

3.3V (Typ.)

Environment

Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
