DV220X2M-NV0 22 Inch 1920×1920 Square Display Products Description

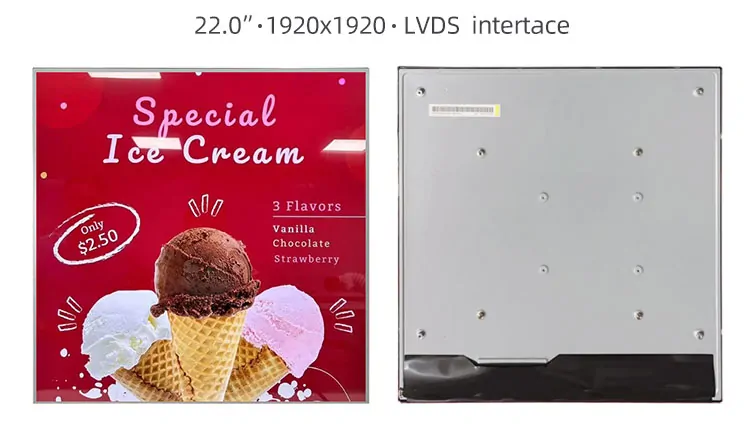

22 Inch 1920×1920 Square Display Overview
DV220X2M-NV0 supports display 1920(RGB)×1920 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 394.56(W)×394.56(H) mm, outline size of 409.56(W)×409.56(H)×12.6(D) mm, viewing area size of 398.56(W)×398.56(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.96±0.10Kgs, active_to_active splicing seam 15.0 mm. As a ADS, Normally Black, Transmissive LCM product, DV220X2M-NV0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 13S4P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV220X2M-NV0 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
22 Inch 1920×1920 Square Display Application
For industrial & smart home appliances & medical instruments & automotive display.

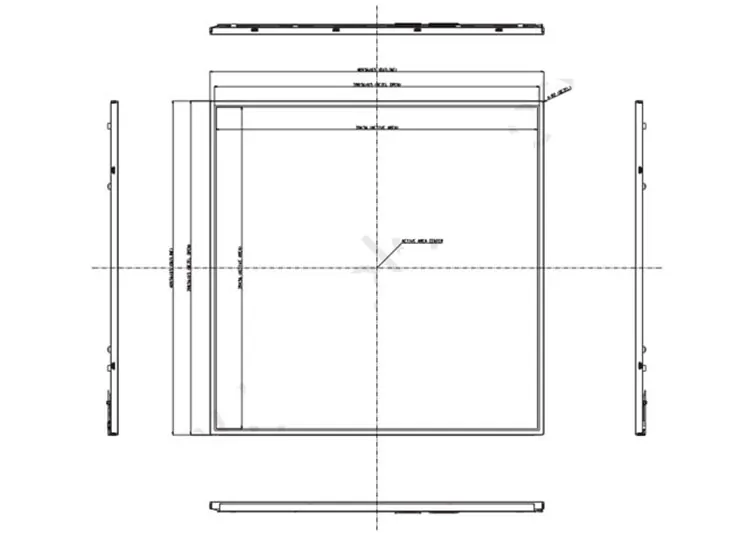

22 Inch 1920×1920 Square Display Drawing
More Square Displays For Reference
| Inch | Resolution | LCM Driver chip | LCM Dimensions | Display area | Interface | Reference brightness |
| 0.85 | 128*128 | ST7735S / GC9107 | 17.58*20.82*1.5 | 15.2064*15.2064 | SPI | 260 |
| 1.3 | 240*240 | ST7789V | 26.2*29.22*1.5 | 23.4*23.4 | MCU 8 BIT | 450 |
| 240*240 | ST7789V | 26.2*29.22*1.5 | 23.4*23.4 | MCU 8 BIT | 1000 | |
| 240*240 | ST7789V | 26.2*29.22*1.5 | 23.4*23.4 | MCU 8 BIT | 400 | |
| 240*240 | ST7789V | 26.2*29.22*1.5 | 23.4*23.4 | SPI4 | 450 | |
| 1.44 | 128*128 | ST7735S | 32.36*38*2.6 | 26.5*26.5 | SPI4 | 300 |
| 1.5 | 128*128 | SSD1351 | 33.80*34.00*1.60 | 26.855*26.864 | 8-bit parallel, 3-/4-wire SPI | 90 |
| 1.54 | 320*320 | ST7796 | 31.52*33.72*1.65 | 27.22*27.72 | MIPI | 700 |
| 320*320 | ST7796 | 31.52*33.72*1.65 | 27.22*27.72 | RGB 16 BIT | 700 | |
| 240*240 | ST7789 | 31.92*35.11*2.13 | 27.22*27.72 | MCU 8 BIT | 900 | |
| 240*240 | ST7789V | 31.52*33.72*1.81 | 27.22*27.72 | SPI4 | 750 | |
| 240*240 | ST7789V | 31.52*34.71*2.03 | 27.22*27.72 | MCU 8 BIT | 800 | |
| 240*240 | ST7789V | 31.92*35.11*1.81 | 27.22*27.72 | RGB 6 BIT | 450 | |
| 1.54 | 152*152 | SSD1681 | 31.8* 37.3* 1.14 | 27.512* 27.512 | SPI | 0 |
| 1.54 | 200x200 | SSD1681 | 31.8 x 37.32 x 0.98 | 27.00 x 27.00 | SPI | 0 |
| 3.4 | 480x480 | ST7701SN-G5 | More choose | More choose | MIPI | 550 |
| 3.92 | 320*320 | ST7355P | 74.86*76.73*2.13 | 71.14*69.82 | SPI/MCU | 350 |
| 3.95 | 480*480 | ST7701S | 81.8*84.95 | 71.93*71.93 | RGB 18 BIT | 350 |
| 480*480 | ST7701S | 83*83*3.06 | 71.93*71.93 | MIPI 2 LANE | 350 | |
| 4 | 720*720 | More choose | 77*80*14 | 71.928*71.928 | Type C | 700 |
| 4.2 | 720*672 | More choose | More choose | More choose | RGB/SPI | More choose |
| 7 | 720*720 | More choose | More choose | More choose | LVDS | More choose |
| 17 | 1920*1920 | More choose | 325.01*319.33*12.2 | 305.28*305.28 | eDP | 600 |
| 19 | 1280*1024 | H-DMI | 423*347.7*37 | 376.32*301.06 | HDMI | 720 |
| 22 | 1920*1920 | More choose | 394.56*394.56 | 409.56*409.56*12.6 | LVDS | 500 |
| 28.1 | 800*800 | More choose | 504*504 | 526.8*526.8*28 | LVDS | 700 |
| 33 | 1920*1920 | More choose | 596.16*596.16 | 612.96*612.96 | LVDS | 420 |
| 44.9 | 1280*1280 | More choose | 806.4*806.4 | 829.2*829.2*27.1 | LVDS | 700 |
| Touch Screens are Available and Optional | ||||||
