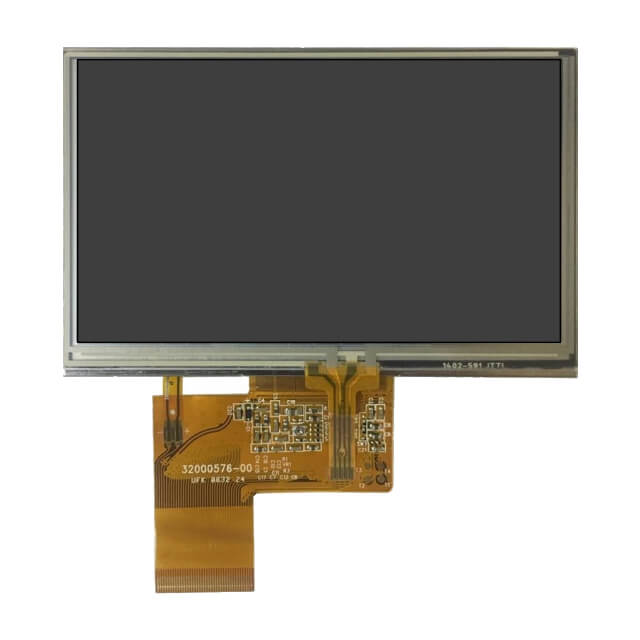

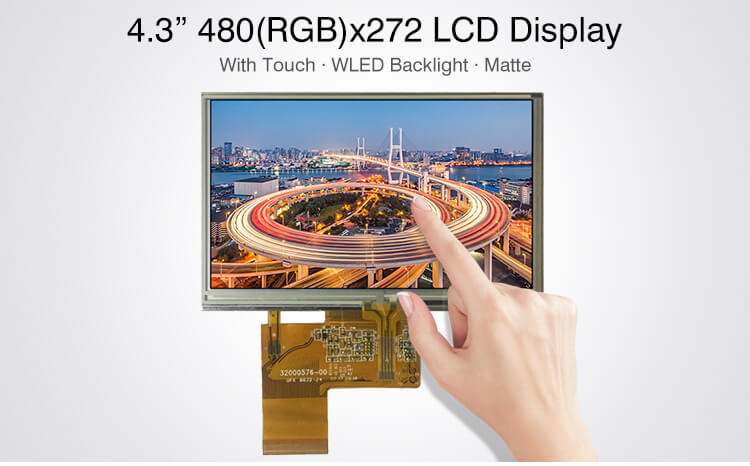

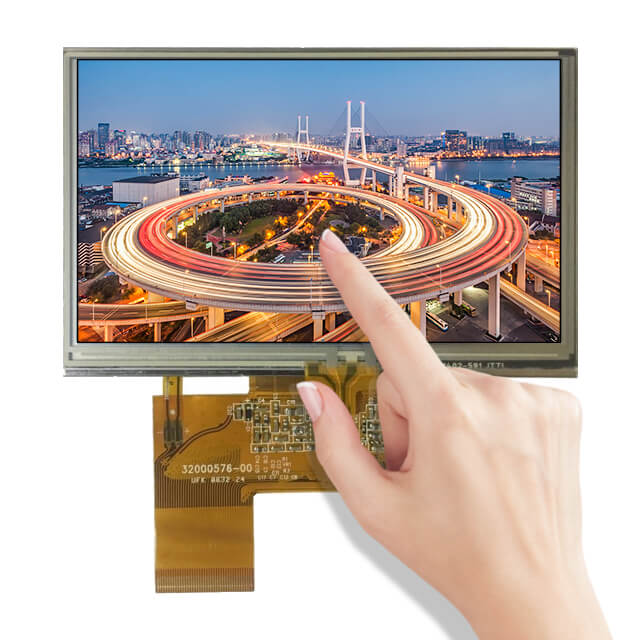

Custom lcd screen ips panel Original new 4.3-inch TFT-LCD 480x272 touch Display monitor board for Handheld&PDA

  • Part No.:AT043TN24V.7
  • Size:4.3″ inch
  • Resolution:480x272
  • Panel Interface:Parallel RGB (1 ch,8-bit)
  • Display mode:TN,Transmissive

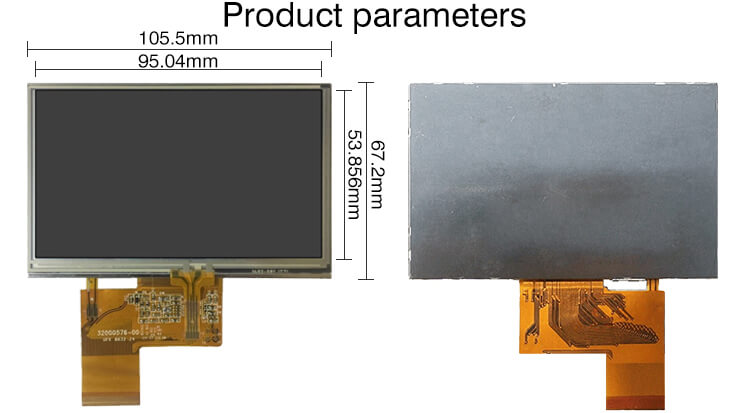

  • Outline Dimension:105.5(H)x67.2(V)
  • Active Area:95.04(H)x53.856(V)
  • Viewing Angle L/R/U/D:70/70/50/70 (Typ.)
  • Brightness(cd/m2):500(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

Product Description

Product size 4.3-inch Type a-Si TFT-LCD, LCM
Pixel Format 480(RGB)×272 [WQVGA] 128PPI Configuration RGB Vertical Stripe
Active Area 95.04(H)×53.856(V) mm Outline Dim. 105.5(H)×67.2(V) mm
Bezel Area 98.7(H)×57.5(V) mm Treatment Antiglare
Luminance 500 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Support Color 16.7M 50% NTSC Light Source WLED [8S1P] , 20K hours , W/O Driver
Weight 59.0g (Typ.) Designed For Automotive Display Portable Navigation MP3 PMP
Frequency - Touch Panel 4-wire Resistive Touch
Interface Type Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
