0.48"-5" LCD Display (2.2")

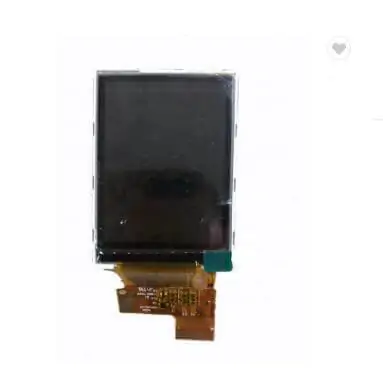

custom lcd 2.2 inch 240x320 OEM Transflective sunglight readable lcd panel ET022QV02-O RGB565

Part No.:ET022QV02-O
Size:2.2″ inch
Resolution:240x320
Panel Interface:
Display mode:LTPS Transflective
Outline Dimension:40.6x56.6x2.91
Active Area:33.84(W)x45.12(H)
Viewing Angle L/R/U/D:60 45 50 45
Brightness（cd/m2）:195cd/m2
Operation / Storage Temp:/ / /
Touch:no

ET022QV02-O SPECIFICATION

Model No.:	ET022QV02-O	Brightness:	195cd/m2
Brand:	Youritech	Interface:	RGB565
Panel Size:	2.2"	Viewing Angle:	60 45 50 45
Pixel:	240*320	Display Mode:	LTPS Transflective
Active Area:	33.84(W) *45.12(H)	Storage Temperature:	-30~+80℃
Contrast Ratio:	150:1	Operation Temperature:	-20~+70℃
